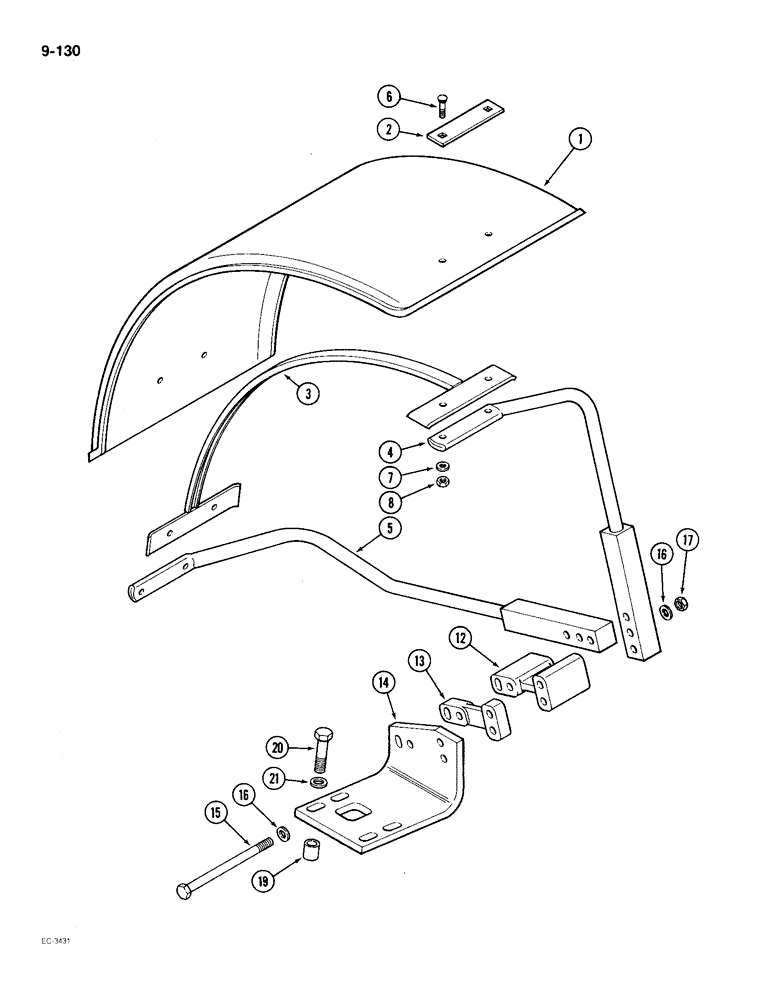

Запчасти Case IH 2096 (9-130) - FRONT FENDERS, MFD TRACTORS (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

FENDER ATTACHMENT - front (Carraro front drive axle), Includes: Ref. 1 - 21

1шт.

NSS

NOT SOLD SEPARAT

FENDER ATTACHMENT - front (ZF front drive axle), Includes: Ref. 1 - 21

1шт.

1

A181006

FENDER

- front

2шт.

2

A181125

PLATE

- retaining, outer fender

4шт.

3

A181124

CHANNEL

SUPPORT - fender

2шт.

4

A185830

BRACE

- fender, top right

1шт.

4

A185829

BRACE

- fender, top left

1шт.

5

A185832

BRACE

- fender, right rear

1шт.

5

A185831

BRACE

- fender, left rear

1шт.

6

133-2

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch

8шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

8

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

8шт.

12

A181128

SPACER

- fender, 100 mm

2шт.

13

A181129

SPACER

- fender, 25 mm

2шт.

14

1971102C1

PLATE

BRACKET - fender brace mounting, right (Use with Carraro front drive axle)

1шт.

14

A181127

PLATE

BRACKET - fender brace mounting, right (Use with ZF front drive axle)

1шт.

14

1971103C1

PLATE

BRACKET - fender brace mounting, left (Use with Carraro front drive axle)

1шт.

14

A181126

PLATE

BRACKET - fender brace mounting, left (Use with ZF front drive axle)

1шт.

15

413-8140

BOLT,Hex, 1/2" - 13 x 8-3/4", Gr 5

- hex, 1/2 NC x 8-3/4 inch

8шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

16шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

A180416

SPACER

-, Serial Range: axle-bracket

8шт.

20

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

8шт.

21

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

16шт.
