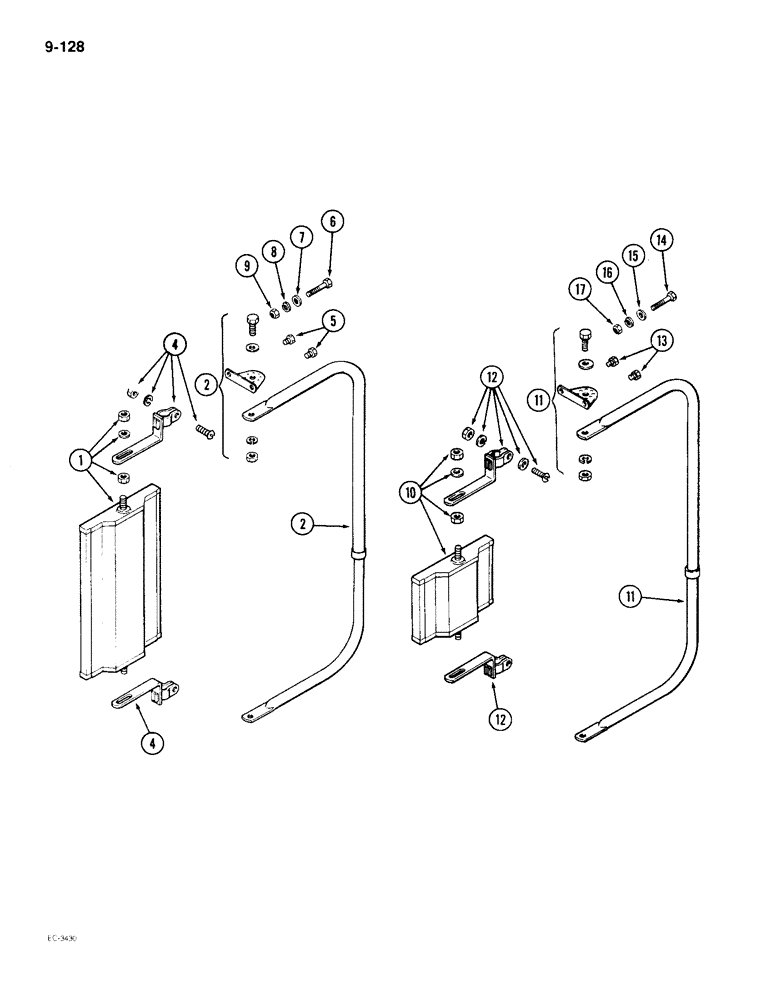

Запчасти Case IH 2096 (9-128) - MIRROR ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

- side mirror (Chrome), dual vision, Includes: dual vision mirror assembly and Ref. 1 - 9

1шт.

A177935

MIRROR

ATTACHMENT - side mirror (Black), dual vision, Includes: dual vision mirror assembly and Ref. 1 - 9

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - dual vision (Order A61895), Includes: Ref. 1, 2, and 4

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - dual vision (Order A177935), Includes: Ref. 1, 2, and 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror, swing away, dual vision

1шт.

4

A42767

ADAPTER

- mirror bracket, dual vision

2шт.

5

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch, dual vision

4шт.

6

413-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch, (Right window), dual vision

4шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), Dual vision 1/4", SAE

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Dual vision 1/4"

4шт.

9

425-104

NUT,1/4"-20, Cl 5

Dual vision 1/4"-20, G5

4шт.

A61897

KIT

ATTACHMENT - mirror, 4 x 6 convex, Includes: 4 x 6 convex mirror assembly and Ref. 10 - 17

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSEMBLY - 4 x 6 convex (Chrome), Includes: Ref. 10 - 12

1шт.

10

A42768

MIRROR

- 4 x 6 convex (Order A61897)

1шт.

11

A42764

BRACKET

- mirror, swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

1шт.

13

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch (Left door), 4 x 6 convex

4шт.

14

413-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch, (Right window), 4 x 6 convex

4шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), 4 x 6 convex 1/4", SAE

4шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 4 x 6 convex 1/4"

4шт.

17

425-104

NUT,1/4"-20, Cl 5

4 x 6 convex 1/4"-20, G5

4шт.
