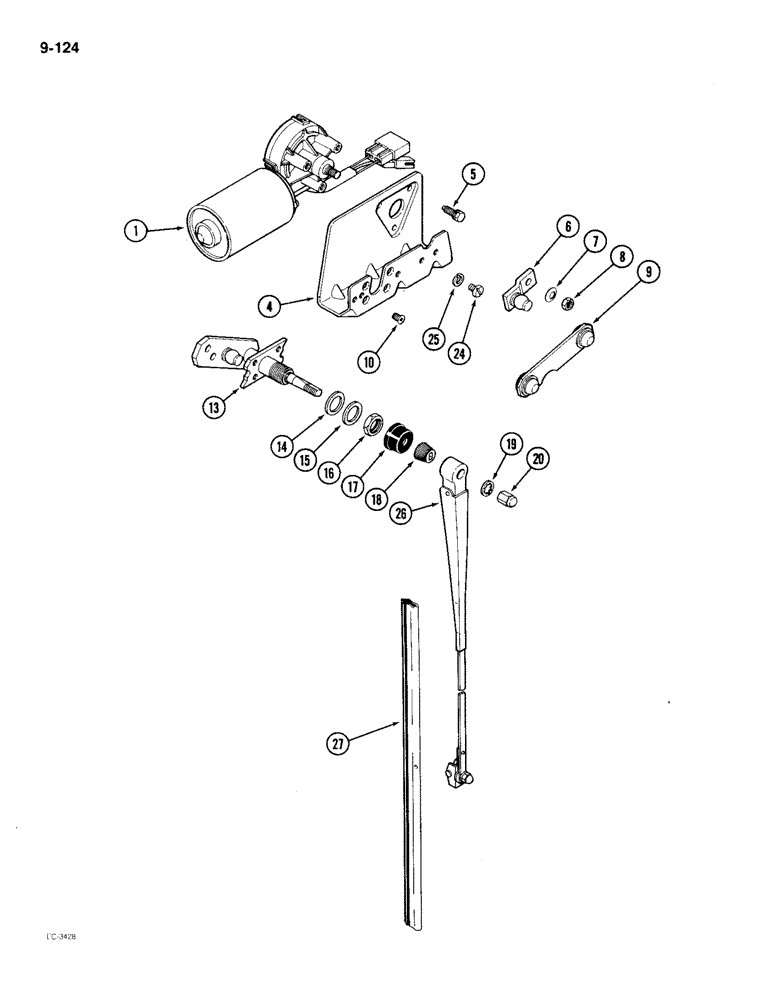

Запчасти Case IH 2096 (9-124) - WINDSHIELD WIPER, ROBERT BOSCH (09) - CHASSIS/ATTACHMENTS

F96900

MOTOR HOUSING

WIPER ASSEMBLY - windshield, Includes: windshield wiper assembly and Ref. 1 - 10

1шт.

See Figure 9-122 for optional American Bosch wiper assembly.

1шт.

NSS

NOT SOLD SEPARAT

WIPER ASSEMBLY - windshield (Robert Bosch) (Order F96900)

1шт.

1

F96890

WIPER MOTOR

MOTOR - wiper, windshield, 12 volt

1шт.

4

N8359

SUPPORT

BRACKET - wiper

1шт.

5

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW ASSEMBLY - mounting, with washer

3шт.

6

N8360

SUPPORT

ARM - drive

1шт.

7

N8361

SPRING WASHER

- spring, retaining

1шт.

8

L112090

NUT

- hex, 8 mm, retaining

1шт.

9

N8358

LINK

LINK - wiper

1шт.

10

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- bracket

1шт.

13

N9090

WIPER BLADE

SHAFT - pivot

1шт.

14

N6749

WASHER

- fiber, shaft pivot

1шт.

15

N6750

WASHER

- steel

1шт.

16

N6751

NUT

- shaft

1шт.

17

N6752

CAP

- shaft, rubber

1шт.

18

N6753

BLOCK DRIVER

DRIVER - knurled, wiper arm

1шт.

19

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

1шт.

10

N6754

NUT

- dome, 3/8 inch NF, arm retaining

1шт.

24

459-1256

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- machine, pan head slotted, 1/4 NF x 3/8 inch

2шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

A165060

WIPER ARM

ARM - wiper blade, 18 inch, black

1шт.

27

A165059

WIPER

BLADE - wiper, 20 inch, black

1шт.
