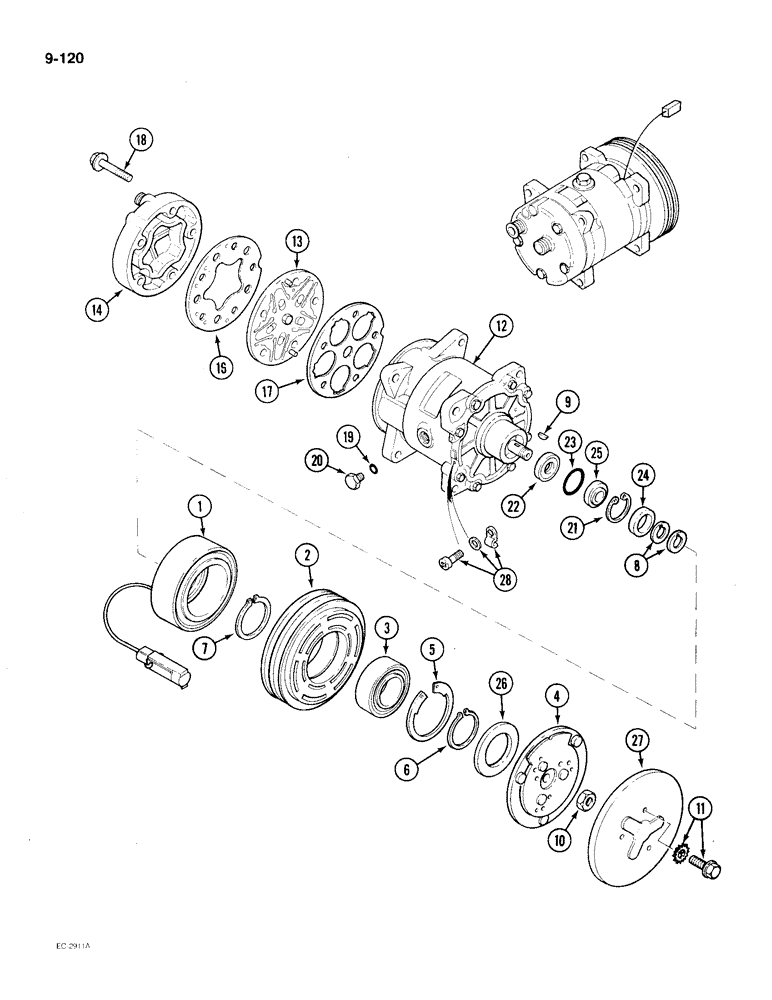

Запчасти Case IH 2096 (9-120) - AIR CONDITIONING, AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A177068

AIRCOND. COMPRESSOR

ASSEMBLY - air conditioning, Includes: compressor clutch assembly and Ref. 1 - 27

1шт.

A177068R

REMAN-A/C COMPRESSOR

2096 DIESEL S/N 17897500 TO 17897505, 17897510 & AFTER (1/84-12/86)

1шт.

A177068C

CORE-DISTRIB KIT-FUE

Return Number

1шт.

A49676

CLUTCH ASSEMBLY

- compressor, Includes: Ref. 1 - 11

1шт.

1

A49659

COIL ASSY.

COIL ASSEMBLY - field, 12 volt

1шт.

2

A49660

PULLEY ASSY.

PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3

1шт.

3

A49663

BALL BEARING,40 mm ID x 62 mm OD x 24 mm

BEARING - pulley

1шт.

4

A49677

PLATE

- front

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

A49673

KIT

- service, clutch, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

RING - snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap, clutch

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - clutch

1шт.

9

A49671

KEY

- shaft, compressor

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - retainer

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - retainer, with lock washer

1шт.

A49672

COMPRESSOR

ASSEMBLY - field (Without clutch), Includes: Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

BLOCK - compressor

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - valve (With gasket, Ref. 17)

1шт.

14

A49661

HEAD (CYLINDER)

HEAD - cylinder (With gasket, Ref. 16)

1шт.

A49668

GASKET KIT

KIT - service, gaskets, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - cylinder head

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - valve plate

1шт.

18

A49669

SCREW,Cylinder

BOLT - hex flanged head

5шт.

19

A49666

O-RING

- rubber

3шт.

20

A49667

PLUG

- oil filler

1шт.

A49665

SEAL KIT

KIT - service, compressor seals, Includes: Ref. 21 - 25

1шт.

21

A49664

CIRCLIP

RING - snap, seal seat

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

24

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

26

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER - dust, bearing

1шт.

27

1981776C1

COVER

- dust, clutch

1шт.

A49670

PORT

- service (Not illustrated)

2шт.
