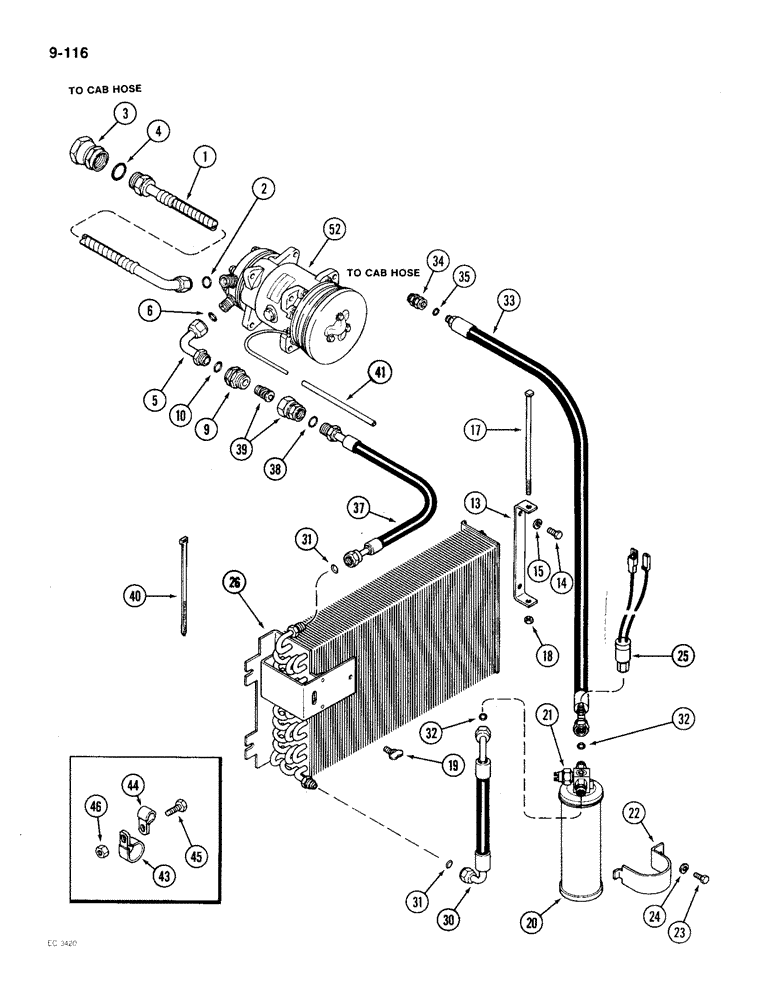

Запчасти Case IH 2096 (9-116) - AIR CONDITIONING, CONDENSER AND RECEIVER DRIER (09) - CHASSIS/ATTACHMENTS

1

A181015

HOSE

- suction

1шт.

2

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

3

A42664

COUPLING, BREAK AWAY

COUPLING - half

1шт.

4

A61197

O-RING,1.78mm Thk x 27mm ID

- sealing

1шт.

5

A177442

TUBE

- high pressure

1шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

9

A176352

COUPLING, BREAK AWAY

COUPLING - half, self-sealing

1шт.

10

T39847

O-RING,1.78mm Thk x 17mm ID

- sealing

1шт.

13

A141489

SUPPORT

BRACKET - pivot, condenser

1шт.

14

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

117-2

SQUARE BOLT,1/4" - 20 x 8 1/2", Gr 2

- square head, 1/4 NC x 6-1/2 inch, grade 2

1шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

19

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, 5/16 x 5/8 inch

2шт.

NSS

NOT SOLD SEPARAT

CONDENSER ASSEMBLY - air conditioning, Includes: Ref. 20 - 40

1шт.

20

A76312

RECEIVER-DRYER

RECEIVER-DRIER - freon, Includes: Ref. 21

1шт.

21

A47717

SWITCH

- low pressure

1шт.

22

A61193

CLAMP

- reciever-drier

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

A65779

SWITCH

- cut-out, high pressure

1шт.

26

A145899

COIL

CONDENSER - air conditioning

1шт.

30

A145911

A/C HOSE

HOSE -, Serial Range: condenser-drier

1шт.

31

A62229

GASKET

- copper, 3/8 inch

2шт.

32

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

33

A145898

HOSE

- drier

1шт.

34

A61196

COUPLING, BREAK AWAY

COUPLING - half, self-sealing

1шт.

35

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- 5/16 ID x 1/16 inch wide

1шт.

37

A176354

HOSE ASSY.

HOSE -, Serial Range: condenser-compressor

1шт.

38

T39847

O-RING,1.78mm Thk x 17mm ID

- sealing

1шт.

39

T39884

COUPLING, BREAK AWAY

COUPLING - female half

1шт.

40

L76747

STRAP

- tie, 8 inch

2шт.

41

A62053

HARNESS

LOOM - clutch cable

1шт.

43

A177230

CLAMP,1 7/16", Insul, 3/8" Bolt

CLIP - coupling to suction hose

1шт.

44

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - hose, high pressure

1шт.

45

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

46

825-1410

NUT,M10, Cl 8

1шт.

52

A177068

AIRCOND. COMPRESSOR

ASSEMBLY - air conditioning (See Figure 9-120)

1шт.

A177068R

REMAN-A/C COMPRESSOR

2096 DIESEL S/N 17897500 TO 17897505, 17897510 & AFTER (1/84-12/86)

1шт.

A177068C

CORE-DISTRIB KIT-FUE

Return Number

1шт.
