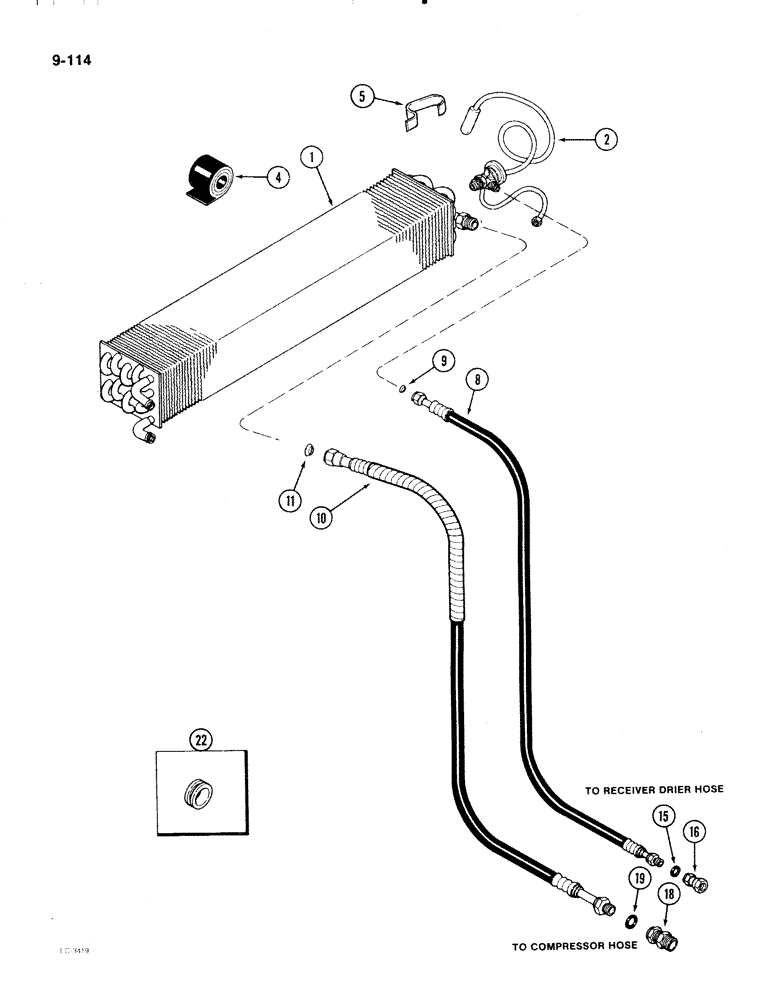

Запчасти Case IH 2096 (9-114) - AIR CONDITIONING COOLING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CORE - heater and air conditioning (See Figure 9-110)

1шт.

2

F64389

VALVE

- expansion

1шт.

4

345-37

TAPE

- cork, insulating, 1/8 x 2-1/2 x 12 inch

1шт.

5

98156C1

CLAMP

- hose

1шт.

8

F66224

HYDRAULIC HOSE

HOSE - pressure

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

F66225

A/C HOSE

HOSE - suction

1шт.

11

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4 inch

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

- hose

1шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING - high side, reciever-drier hose

1шт.

18

A61194

COUPLING, BREAK AWAY

COUPLING - hose, compressor

1шт.

19

A61197

O-RING,1.78mm Thk x 27mm ID

- coupling

1шт.

22

F64485

GROMMET

- hose

2шт.
