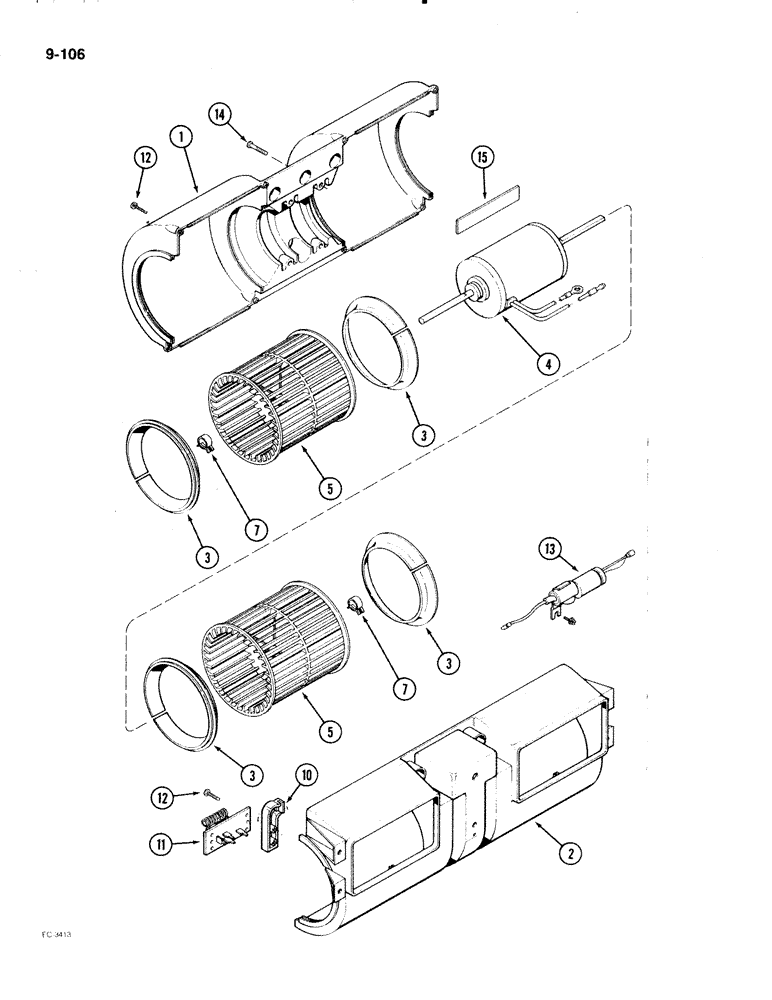

Запчасти Case IH 2096 (9-106) - BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

F96822

BLOWER ASSEMBLY - cab air, Includes: Ref. 1 - 15

1шт.

F96822 IS NOT SERVICED AS AN ASSEMBLY... ORDER INDIVIDUAL COMPONENTS

1шт.

1

F64741

HOUSING

- blower fan, lower

1шт.

2

F64740

HOUSING

- blower fan, upper

1шт.

3

F64739

RING

- plastic, fan retaining

4шт.

4

F96901

MOTOR, ELECTRIC

MOTOR - blower

1шт.

5

F64935

BLOWER,Fan

FAN - blower

2шт.

7

F64936

CLAMP

- fan

2шт.

10

F66204

BRACKET

- resistor mounting

1шт.

11

F44900

RESISTOR

- blower

1шт.

12

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, pan Phillips, No. 8-16 x 3/4 inch

10шт.

13

F64184

CAPACITOR

- noise, radio

1шт.

14

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - self-tapping, pan Phillips, head, No. 8-16 x 1 inch

4шт.

15

NSS

NOT SOLD SEPARAT

SEAL - foam (Cut from F64119)

1шт.

15

F64119

SEALING STRIP

SEAL - foam, bulk length, 100 ft

1шт.
