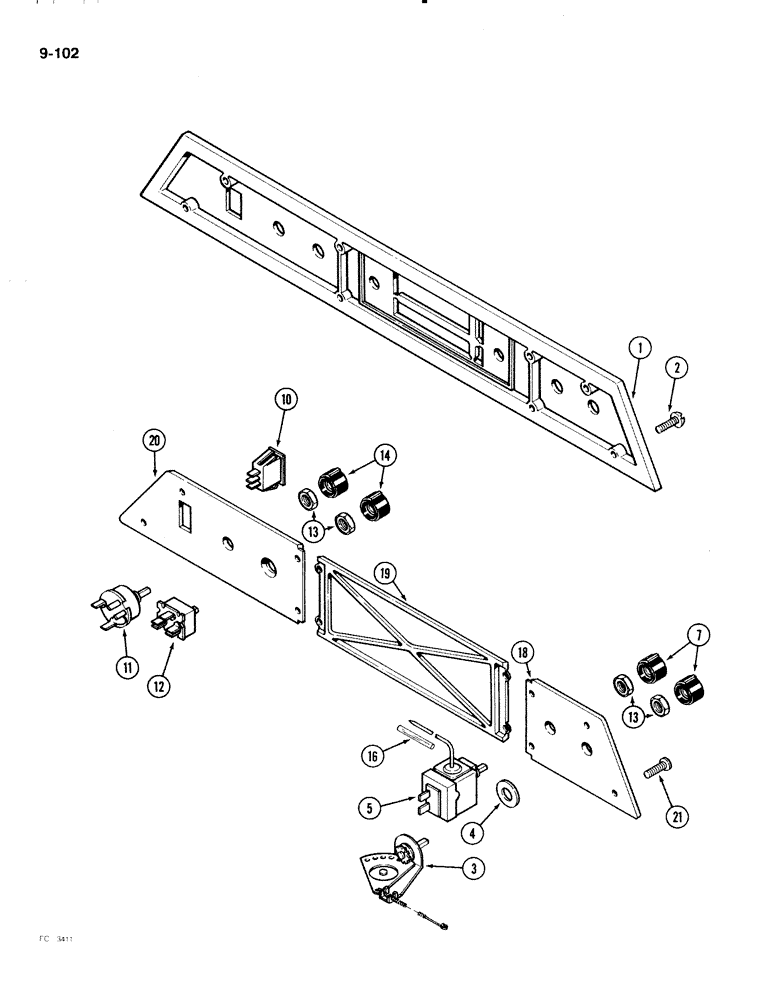

Запчасти Case IH 2096 (9-102) - CAB HEATING AND AIR CONDITIONING CONTROL PANEL (09) - CHASSIS/ATTACHMENTS

1

F64629

PANEL ASSY.

PANEL - control

1шт.

Prior to cab S/N 12107787

1шт.

2

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 1 inch

8шт.

3

F64904

CONTROL

ASSEMBLY - heater

1шт.

4

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

5

F43186

SWITCH ASSY

SWITCH - air conditioning

1шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

7

F66127

BUTTON

KNOB - control

2шт.

10

F64733

IGNITION SWITCH

SWITCH - dome light

1шт.

11

F43359

SWITCH

- wiper

1шт.

12

A42622

SWITCH

- blower

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- retaining

2шт.

14

F66127

BUTTON

KNOB - control

2шт.

16

F63719

TUBE

- cover, switch connector

1шт.

18

F66128

BEZEL

PANEL - control, front section

1шт.

19

F66139

BEZEL

PANEL control, center section

1шт.

Cab S/N 12107787 and after

1шт.

20

F66129

BEZEL & GASKET

PANEL - control, rear section

1шт.

Cab S/N 12107787 and after

1шт.

21

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, 10-16 x 3/4 "

8шт.
