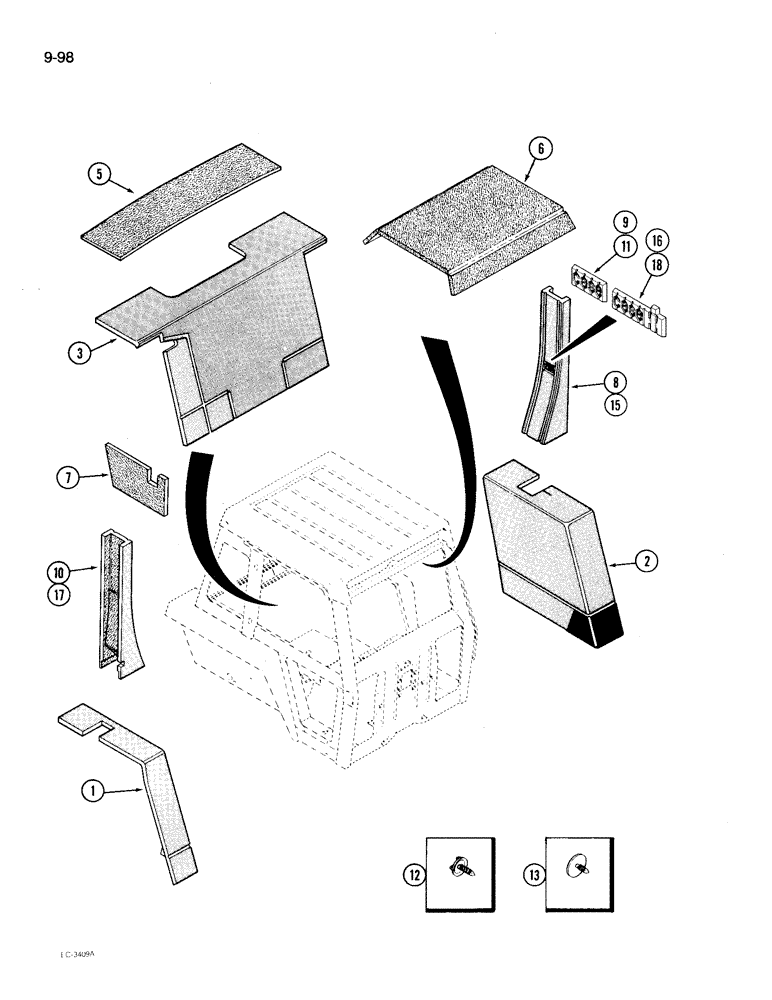

Запчасти Case IH 2096 (9-098) - CAB ACCOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

F64992

COVER

- rear panel, right

1шт.

2

F64993

COVER ASSY

COVER - rear panel, left

1шт.

3

F66005

COVER

- fuel tank

1шт.

5

F63352

FOAM

PAD - heat barrier, upper rear

1шт.

6

F66137

PAD

- headliner (Replaces F66022)

1шт.

7

F64825

PAD

- fender, lower right

1шт.

8

F64998

COVER

- post, left side (CASE)

1шт.

9

A177741

SYMBOLS

EMBLEM - CASE logo

1шт.

10

F64997

COVER ASSY

COVER - post, right side (CASE)

1шт.

11

A177741

SYMBOLS

EMBLEM - CASE logo

1шт.

12

F66031

CLIP

- retainer, 1/4 inch

15шт.

13

A176975

ANCHOR

FASTENER - cover

2шт.

15

R52700

COVER ASSY

COVER - post, left side (CASE IH)

1шт.

16

A181538

EMBLEM CASE/IH

EMBLEM - CASE IH logo

1шт.

17

R52701

LINING

COVER - post, left side (CASE IH)

1шт.

18

A181538

EMBLEM CASE/IH

EMBLEM - CASE IH logo

1шт.
