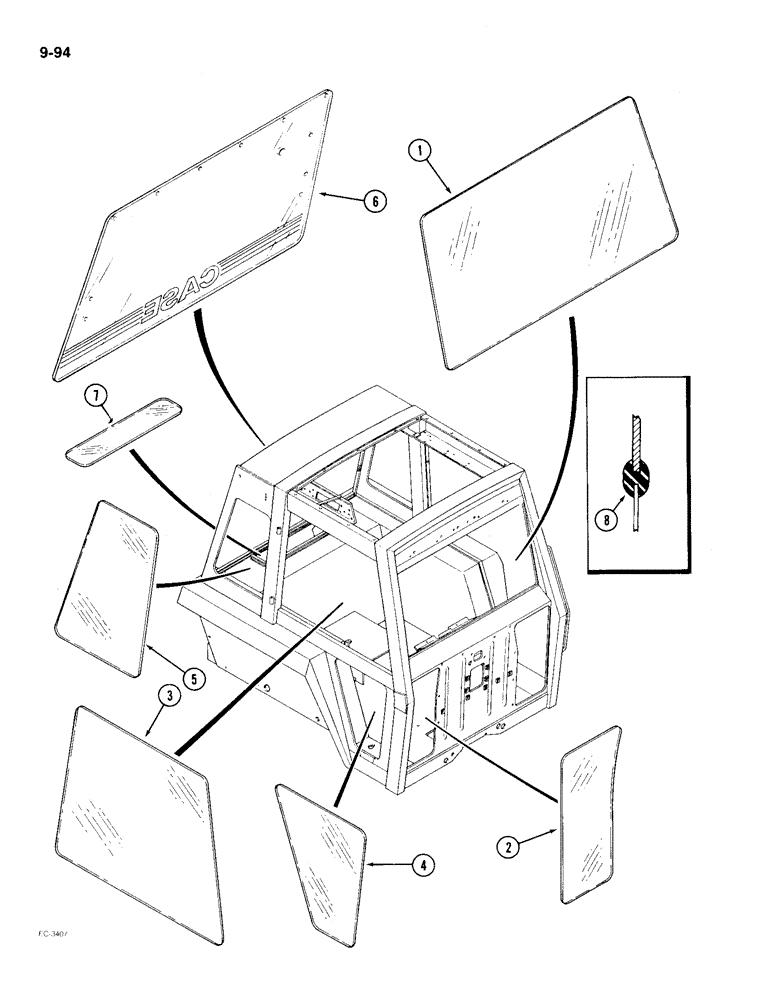

Запчасти Case IH 2096 (9-094) - CAB WINDOW GLASS (09) - CHASSIS/ATTACHMENTS

1

F64934

GLASS

- windshield

1шт.

2

F63838

GLASS

- lower front window

2шт.

3

F63307

GLASS

- right window and upper door

2шт.

4

F63794

GLASS

- right window and lower door

2шт.

5

F64076

GLASS

- rear side window

2шт.

6

F98366

WINDOW ASSY

GLASS - rear window, with hinge (CASE IH) (See Figure 9-090)

1шт.

6

F98367

GLASS

- rear window, with hinge (CASE)

1шт.

7

F64114

GLASS

- rear horizontal window

1шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, windshield, 3514.73 mm (Cut from A42677)

1шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, lower front, 1892.3 mm (Cut from A42677)

2шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, upper door, 2841.63 mm (Cut from A42677)

1шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, lower side, 1816 mm (Cut from A42677)

2шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, side window, 2022.48 mm (Cut from A42677)

2шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, lower rear, 1270 mm (Cut from A42677)

1шт.

8

A42677

MOLDING

SEAL - bulk roll, 50 ft long

1шт.

2

F63838

GLASS

- window, front lower, 4 post ROPS

2шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, lower front, 1892.3 mm (Cut from A42677), 4 post ROPS window

2шт.

8

A42677

MOLDING

SEAL - bulk roll, 50 ft long, 4 post ROPS window glass

1шт.
