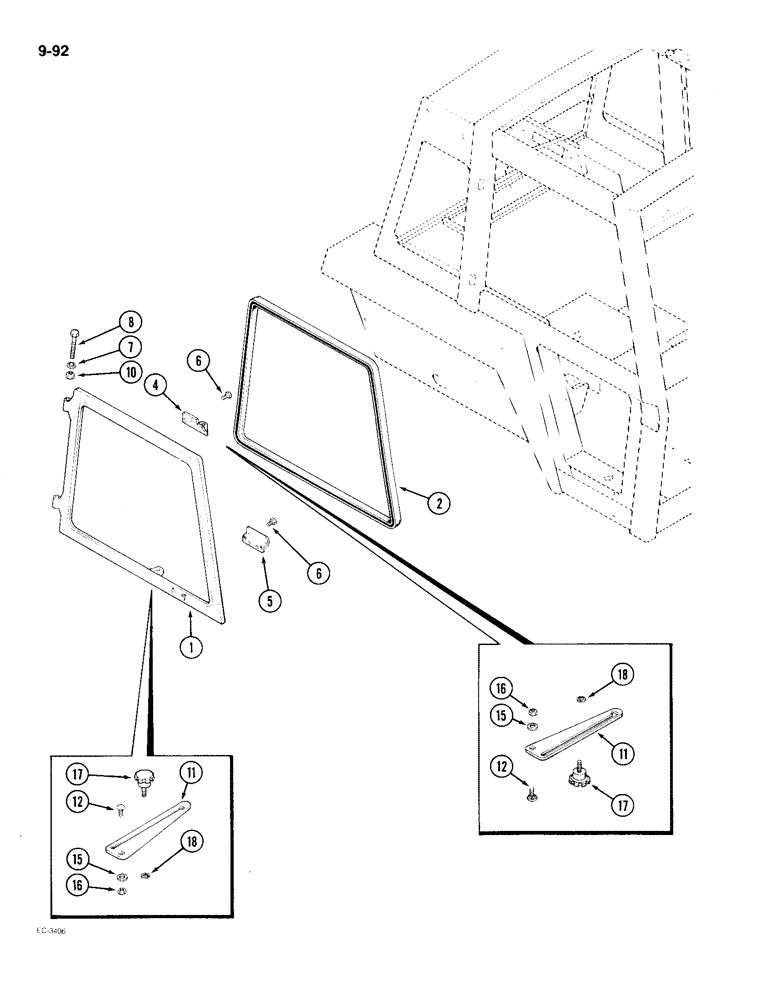

Запчасти Case IH 2096 (9-092) - CAB SIDE WINDOW (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

WINDOW ASSEMBLY - right side, Includes: Ref. 1 - 6

1шт.

1

F97381

WINDOW ASSY

FRAME - right, glass assembly

1шт.

2

F64571

SEAL

SEAL - weather

1шт.

4

F64513

BRACKET

- upper regulator

1шт.

5

F64533

HANDLE

- window

1шт.

6

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

6шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, plastic, hinge

2шт.

8

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

2шт.

11

F64779

REGULATOR

ARM - regulator, window opening

2шт.

12

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch

2шт.

15

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

6шт.

16

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

17

F64253

KNOB

- regulator

2шт.

18

T39518

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.
