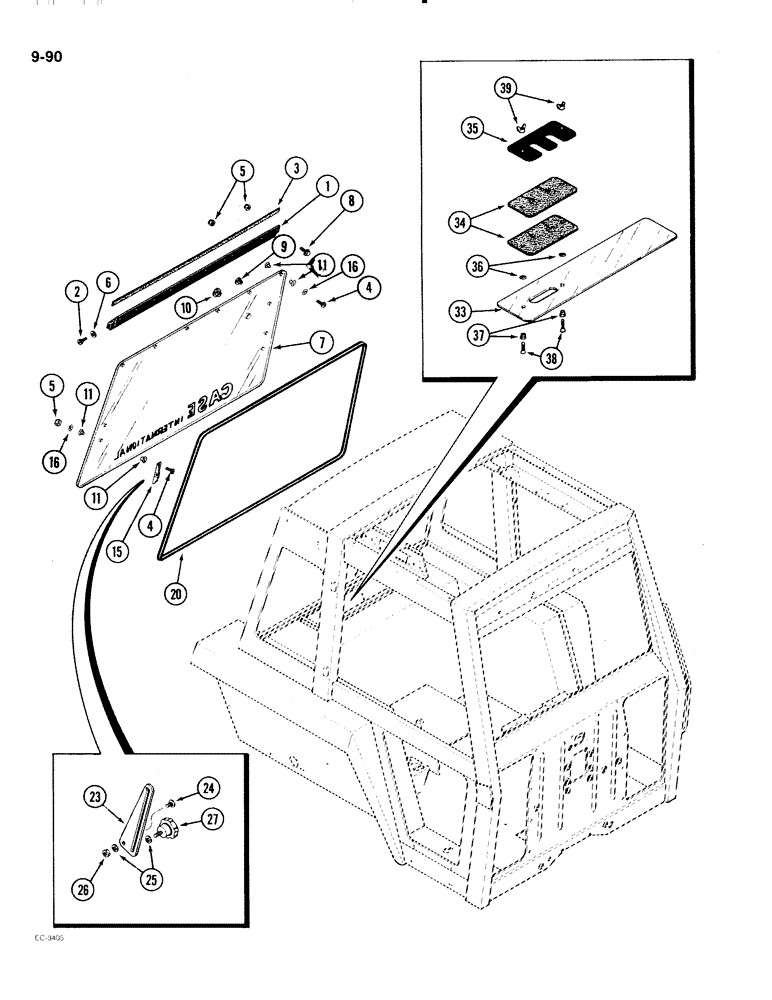

Запчасти Case IH 2096 (9-090) - CAB REAR WINDOWS (09) - CHASSIS/ATTACHMENTS

1

F66132

HINGE

- rear window, upper opening

1шт.

2

280-1848

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - self-tapping, hex washer head, No. 8-18 x 1/2 inch, upper opening window

2шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rear window hinge, 46 inch (Cut from F64119), upper opening

1шт.

3

F64119

SEALING STRIP

SEAL - foam, bulk length, 100 feet, upper opening window

1шт.

4

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

Upper opening window Cross Pan Hd, #10-24 x 3/4"

10шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex lock, No. 10-24, black, upper opening window

20шт.

6

195-84

WASHER,#10

- flat, 7/32 x 7/16 x 3/64 inch, black teflon, upper opening window

2шт.

7

REF

INSTRUCTION

GLASS - rear upper window (See Figure 9-094), opening

1шт.

8

163-42

SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5

- machine, hex washer, No. 10-24 x 1/2 inch, upper opening window

10шт.

9

F66089

PLUG

- window, 3/8 inch diameter, upper opening

1шт.

10

F66090

PLUG

- window, 29/32 inch diameter, upper opening

1шт.

11

F45315

WASHER

- shoulder, upper opening window

20шт.

15

F64138

BRACKET

- regulator arm, upper opening window

2шт.

16

195-81026

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/16 x 5/64 inch, upper opening window

10шт.

20

F64677

SEAL

SEAL - window, upper opening

1шт.

23

F64779

REGULATOR

ARM - regulator, opening window, upper

2шт.

24

134-1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

BOLT - carriage, 5/16 NC x 3/4 inch, upper opening window

2шт.

25

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch, upper opening window

2шт.

26

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, , Upper opening window 5/16"-18, GA

2шт.

27

F64253

KNOB

- regulator, upper opening window

2шт.

NSS

NOT SOLD SEPARAT

KIT - window, lower rear, Includes: Ref. 33 - 39

1шт.

33

A163883

WINDOW

- rear lower

1шт.

34

A165354

SEAL

- cable access, lower window

2шт.

35

A165352

PLATE

- cable access, lower window

1шт.

36

A165523

FASTENER

- flat, Tinnerman, No. 10-24, lower window

2шт.

37

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- window, lower

2шт.

38

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

- machine, oval head Phillips, No. 10-24 x 1 inch, lower window

2шт.

39

129-500

WING NUT,#10-32

NUT - wing, No. 10 NC, lower window

2шт.
