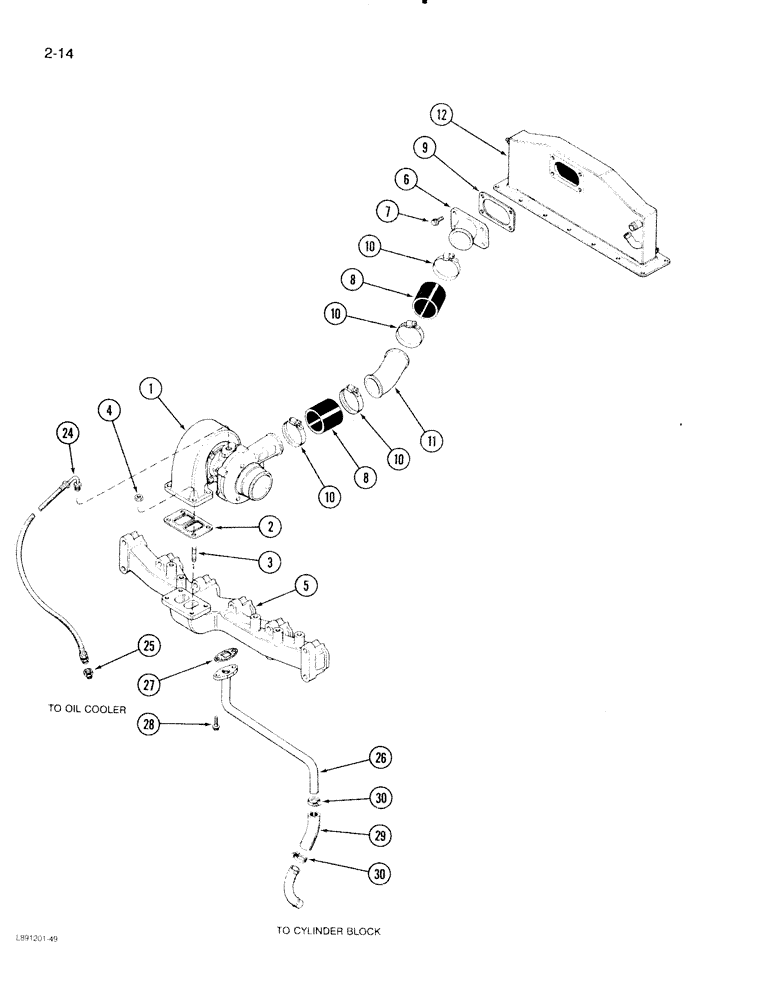

Запчасти Case IH 2096 (2-014) - TURBOCHARGER SYSTEM, 6TA-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-016)

1шт.

2

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

- turbocharger mounting

4шт.

4

J901961

NUT

- hex, turbocharger mounting

4шт.

5

REF

INSTRUCTION

MANIFOLD - exhaust (See Figure 2-018)

1шт.

6

J914486

MANIFOLD

CONNECTION - air crossover (Replaces J906917)

1шт.

7

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

4шт.

8

J916166

INTAKE AIR HOSE

HOSE - crossover, intake (Replaces J902610)

2шт.

9

J914856

GASKET,1.02mm Thk

- connection, crossover

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adj. #28, 1.31/2.25 Type F Worm

4шт.

11

J908776

TUBE,50.8 mm OD x 125.4 mm L

- air

1шт.

12

REF

INSTRUCTION

AFTERCOOLER - engine (See Figure 2-018)

1шт.

24

J920603

HOSE

ASSEMBLY - oil supply, turbocharger (Replaces J903933 and J909547)

1шт.

25

A77457

FITTING

CONNECTOR - female hex, drain tube to filter hose

1шт.

26

J918583

TUBE

- oil drain (Replaces J905202)

1шт.

27

J914388

GASKET

- oil drain tube

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

29

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

30

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.
