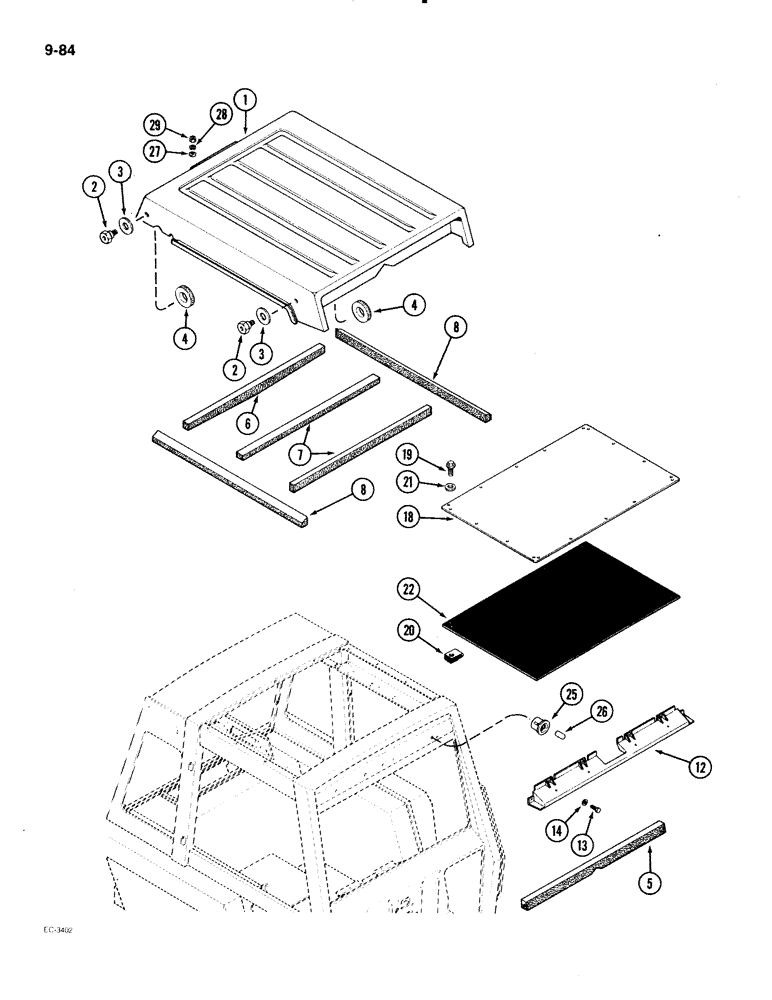

Запчасти Case IH 2096 (9-084) - ROOF AND ROOF CAP, CAB AND FOUR POST ROPS (09) - CHASSIS/ATTACHMENTS

1

A181470

CAP

- roof, cab (Red)

1шт.

1

A177245

ROOF

CAP - roof, cab (White)

1шт.

2

A163030

BOLT

- roof cap

4шт.

3

A163031

WASHER

- retaining, roof cap

4шт.

4

A185690

WASHER,32.5mm ID x 63.5mm OD x 9.5mm Thk

- retaining, roof cap

4шт.

5

A166496

FOAM

- roof cap support, front

1шт.

6

A166493

FOAM

- roof cap support, rear

1шт.

7

A166494

FOAM

- roof cap support, center

2шт.

8

A166495

FOAM

- roof cap support, side

2шт.

12

F66024

SUPPORT

CHANNEL - lamp support, front

1шт.

13

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

14

195-81026

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/16 x 5/64 inch

6шт.

18

F64316

ROOF

- cab (Cab only)

1шт.

19

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- machine, hex washer head, 1/4 NC x 1 inch (Cab only)

18шт.

20

131-825

NUT,Tinn, U, 1/4"-20

- U-type speed, 1/4 inch (Cab only)

18шт.

21

F64531

SEALING WASHER

WASHER - sealing (Cab only)

18шт.

22

F64781

SEAL

- foam (Cab only)

1шт.

25

F64712

BUSHING

- terminal

8шт.

26

F64483

COVER

CAP - terminal

8шт.

27

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-104

NUT,1/4"-20, Cl 5

2шт.
