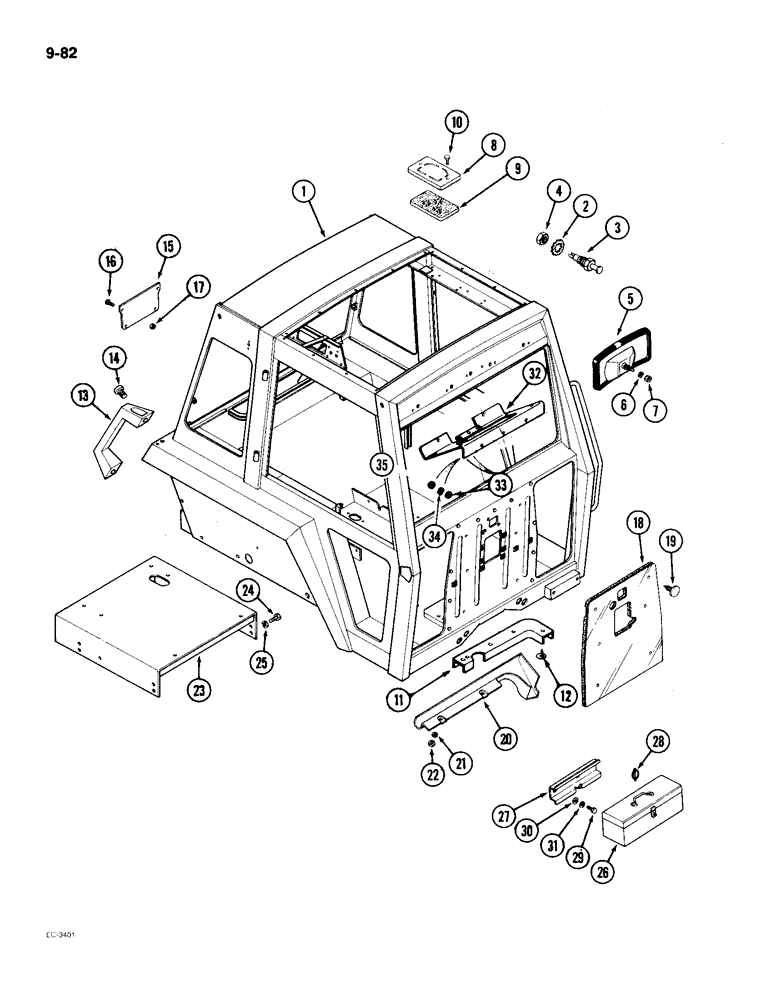

Запчасти Case IH 2096 (9-082) - CAB ASSEMBLY (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

CAB -with heater, air conditioning and radio, Includes: Ref. 1- 12

1шт.

F98351

CAB

- with heater, air conditioning and radio (Europe only), Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

3

F63895

SWITCH

- dome lamp

1шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

5

A177462

MIRROR

ASSEMBLY - rear view, Includes: Ref. 6 and 7

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

8

F64989

COVER ASSY

COVER - air/oil seat port

1шт.

9

F66075

SEAL

- cover

1шт.

10

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

A176973

CHANNEL

- harness

1шт.

12

A176975

ANCHOR

FASTENER - xmas tree

4шт.

13

F64547

HANDLE

- grab, rear

2шт.

14

140-116

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

4шт.

15

A149306

COVER

- rear, fuel tank water trap opening

1шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

17

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10

4шт.

18

A167626

LINING

PAD - noise, firewall

1шт.

19

A166346

FASTENER

- pad, firewall

6шт.

20

F64719

COVER

- harness

1шт.

21

195-81009

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

22

129-119

NUT,1/4"-20, G5

2шт.

23

A176205

CHANNEL

- seat base

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

25

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

NSS

NOT SOLD SEPARAT

BOX ASSEMBLY - tool, Includes: Ref. 26 - 31

1шт.

26

A181436

TOOL BOX

BOX tool

1шт.

27

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

28

A30338

PIN

- klik, 1/4 inch

1шт.

29

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

30

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

32

F66067

PANEL

- column support

1шт.

33

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

3шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

35

425-104

NUT,1/4"-20, Cl 5

3шт.
