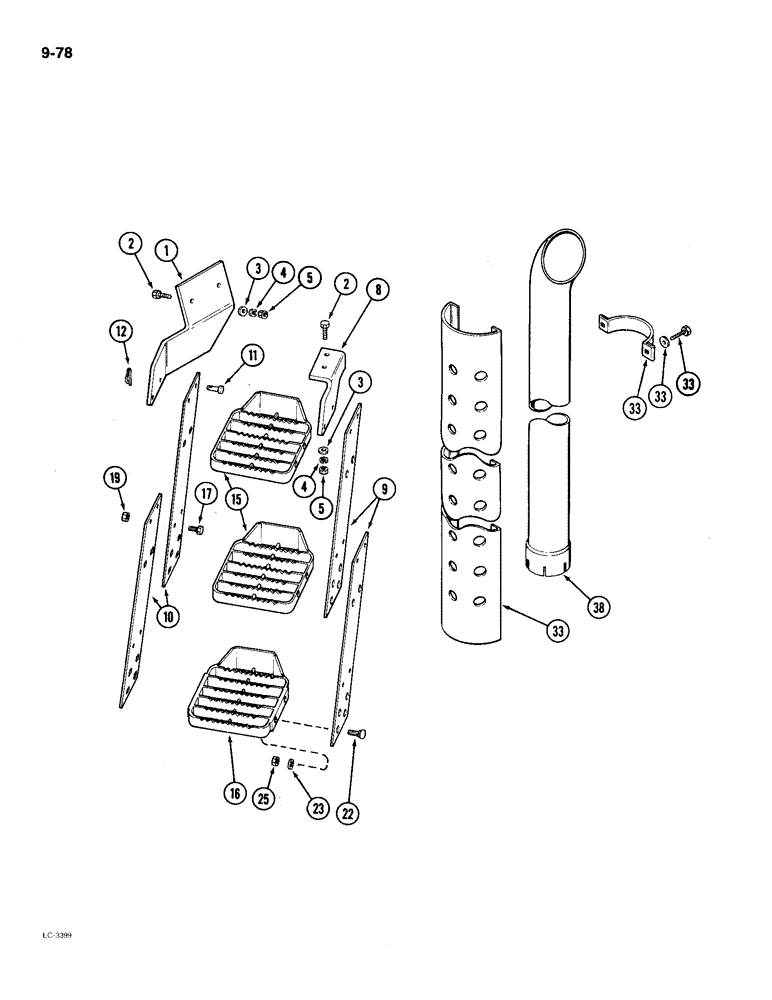

Запчасти Case IH 2096 (9-078) - RIGHT SIDE MOUNTED STEPS AND EXHAUST, TWO POST ROPS (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

ATTACHMENT - step, right side mounted, Includes: Ref. 1 - 33

1шт.

1

A181137

BRACKET

- mounting, rear

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

8

A181138

BRACKET

- mounting, front

1шт.

9

A185583

PLATE

- step side (Rrplaces A177259)

2шт.

10

A185583

PLATE

- step side (Replaces A177273)

2шт.

11

A181426

CLEVIS

PIN - clevis

4шт.

12

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter

4шт.

15

A181776

STEP

- foot, aluminum

2шт.

16

A181777

STEP

- foot, aluminum

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

12шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

25

425-106

NUT,3/8"-16, Cl 5

12шт.

33

NSS

NOT SOLD SEPARAT

KIT - exhaust heat guard

1шт.

38

A181140

EXTENSION

- exhaust

1шт.
