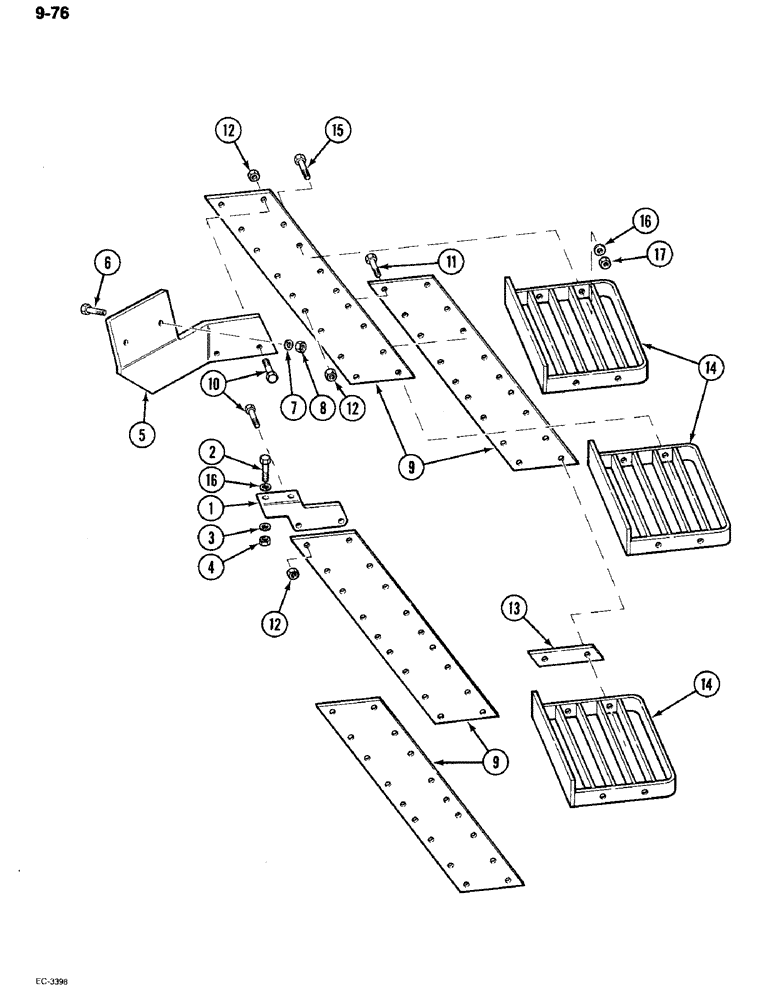

Запчасти Case IH 2096 (9-076) - STEPS, STEEL TYPE, P.I.N. 17897981 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A177873

BRACKET

PLATE -adapter, step

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

A177544

BRACKET

- mounting, step

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

A185583

PLATE

- step side

4шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

13

1970812C1

SPACER

- step

2шт.

14

1970809C1

STEP

- foot, steel (Replaces A181766 and A181777 aluminum)

3шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

12шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

14шт.

17

425-106

NUT,3/8"-16, Cl 5

12шт.
