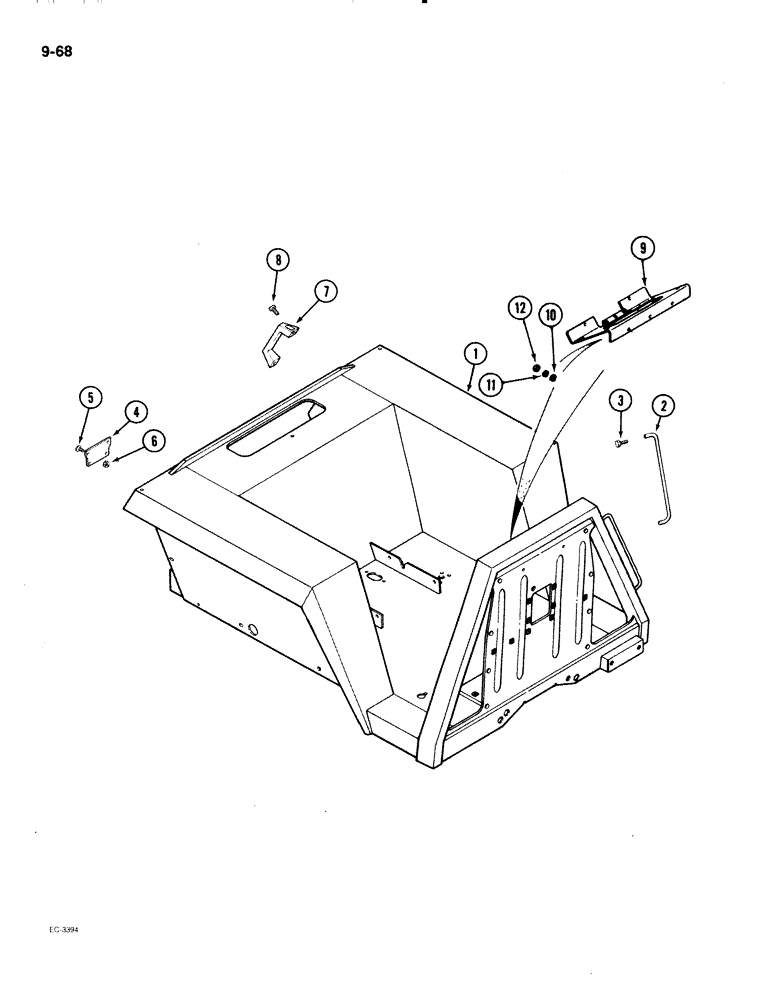

Запчасти Case IH 2096 (9-068) - PLATFORM WITH FENDERS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

F98345

CAB

PLATFORM - tractor, with fenders

1шт.

2

A143834

HANDLE

- mounting

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

4

A149306

COVER

- rear, fuel tank water trap

1шт.

5

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

6

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 6 NC

4шт.

7

F64547

HANDLE

- grab, fender rear

2шт.

8

140-116

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

4шт.

9

F66067

PANEL

- column support

1шт.

10

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

3шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

425-104

NUT,1/4"-20, Cl 5

3шт.
