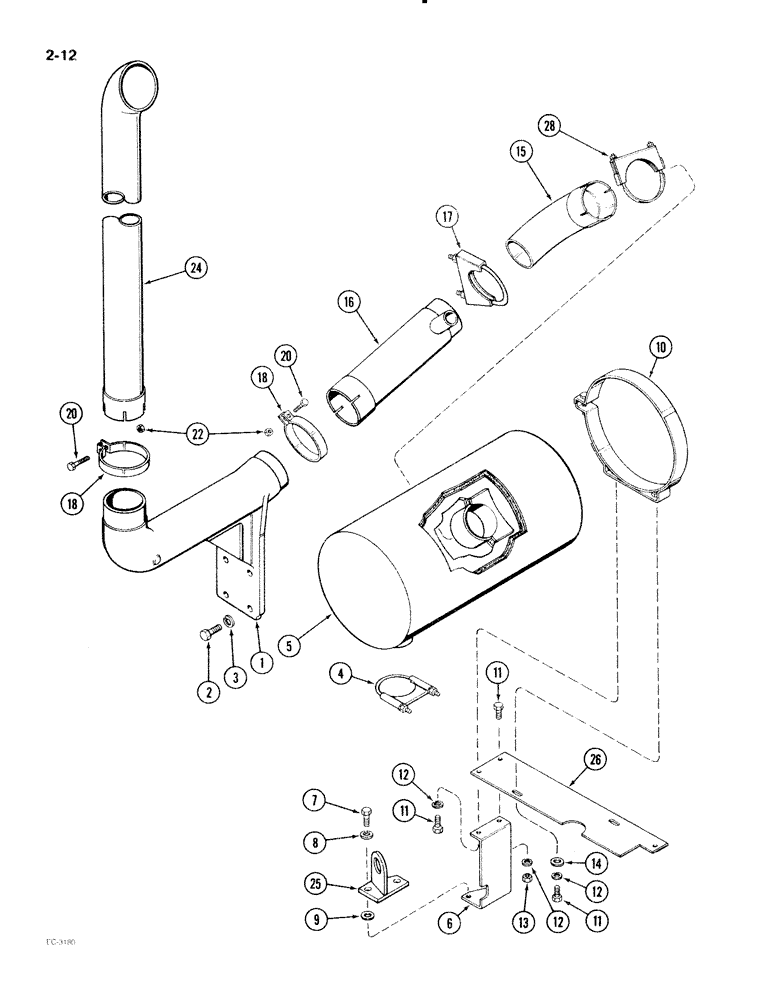

Запчасти Case IH 2096 (2-012) - MUFFLER AND EXHAUST, 6TA-590 ENGINE (02) - ENGINE

1

A166542

FITTING

ELBOW - exhaust

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 40 mm

4шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

4

A176450

CLAMP

- pipe, U-bolt type

1шт.

5

A173700

MUFFLER

- exhaust

1шт.

6

A181141

BRACKET

- mounting, muffler

1шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 30 mm

1шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

10

A173223

MOUNTING CLIP

CLAMP - muffler

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

15

A172789

EXHAUST SYSTEM PIPE

ELBOW - exhaust pipe

1шт.

16

A180967

PIPE

EJECTOR - exhaust pipe

1шт.

17

A145577

CLAMP

- U-bolt type, muffler

1шт.

18

A180654

CLAMP

- 96 mm, exhaust

2шт.

20

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

22

825-1410

NUT,M10, Cl 8

2шт.

24

A180119

PIPE

EXTENSION - exhaust

1шт.

24

A181140

EXTENSION

- exhaust (2 post ROPS)

1шт.

25

J908118

BRACKET

- lifting, rear (See Figure 2-020)

1шт.

26

A180931

SUPPORT

- mounting, air cleaner and muffler

1шт.

28

A177883

CLAMP

- U-bolt type, exhaust elbow

1шт.
