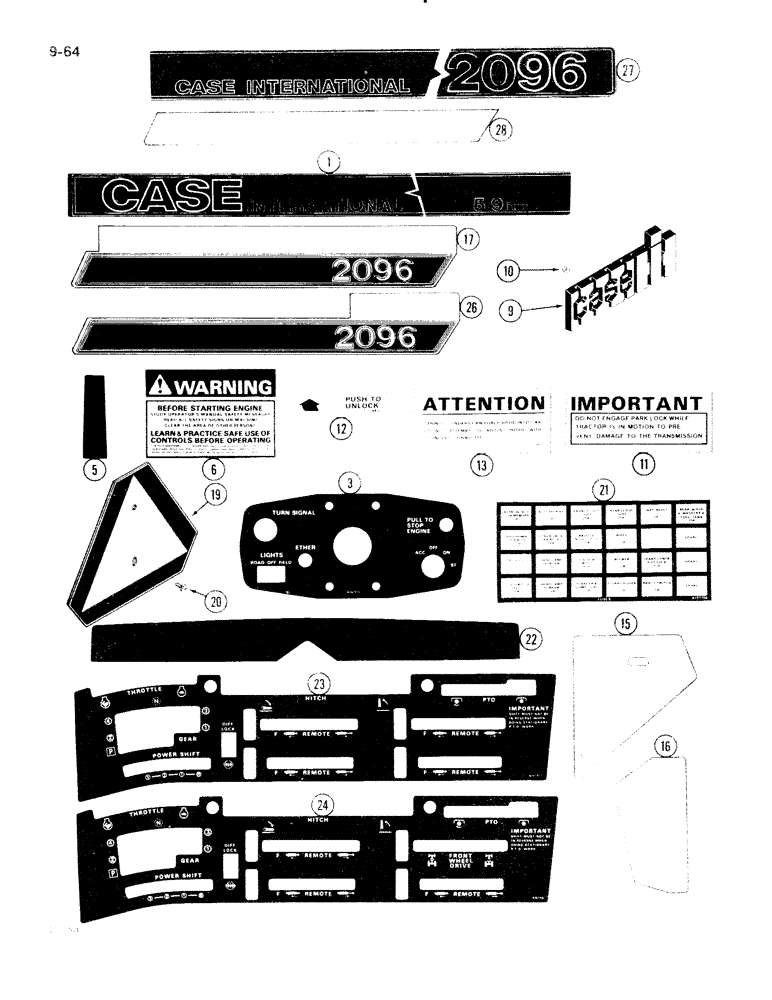

Запчасти Case IH 2096 (9-064) - DECALS, CASE IH (09) - CHASSIS/ATTACHMENTS

A67646

KIT - tractor decals, Includes: Ref. 1 - 16

1шт.

1

A181385

DECAL

- CASE International stripe, right (If equipped)

1шт.

1

A181386

DECAL

- CASE International stripe, left (If equipped)

1шт.

3

A169264

DECAL

- control panel

1шт.

5

321-4142

DECAL

- sight line

1шт.

6

321-3705

DECAL

- Warning, engine starting

1шт.

9

1536056C1

EMBLEM CASE/IH

EMBLEM - grill, CASE IH

1шт.

10

1536080C1

PUSH-ON NUT

CLIP - emblem retaining

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

321-4622

DECAL

- instructions, hood unlatch

1шт.

13

321-4621

DECAL

- hood tilt adjust

2шт.

15

A181392

DECAL

- rear fender, right

1шт.

15

A181391

DECAL

- rear fender, left

1шт.

16

A181389

DECAL

- fender cover, left

1шт.

16

A181390

DECAL

- fender cover, right

1шт.

17

A181394

DECAL

- 2096, right fender

1шт.

17

A181393

DECAL

- 2096, left fender

1шт.

19

A163604

DECAL

EMBLEM - SMV

1шт.

20

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

21

A181300

DECAL

- fuse location, Serial Range: -17897528

1шт.

21

1975364C1

DECAL

- fuse location, digital display (Not illustrated), Start Serial: 17897528

1шт.

21

1975366C1

DECAL

- fuse location, analogue display (Not illustrated), Start Serial: 17897528

1шт.

22

321-6446

DECAL

- cab roof

1шт.

23

A167977

DECAL

- console, 12 speed

1шт.

24

A167978

DECAL

- console, 12 speed (MFD Tractor)

1шт.

26

A181528

DECAL

- 2096, right fender (2 Post ROPS) (If equipped)

1шт.

26

A181527

DECAL

- 2096, left fender (2 Post ROPS) (If equipped)

1шт.

27

A187161

DECAL

- CASE INTERNATIONAL stripe, right (If equipped)

1шт.

27

A187162

DECAL

- CASE INTERNATIONAL stripe, left (If equipped)

1шт.

28

A187163

DECAL

- red, rear fender side, right (If equipped)

1шт.

28

A187164

DECAL

- red, rear fender side, left (If equipped)

1шт.

A46520

DECAL

KIT - decals, French language, (Not Illustrated) includes all decals listed below

1шт.

321-5793

DECAL

- diesel fuel

1шт.

321-6646

DECAL

- warning, engine starting

1шт.

321-5789

DECAL - park lock engagement

1шт.

321-5625

DECAL

- hood unlatch

1шт.

321-5624

DECAL - hood tilt adjust

2шт.

321-6206

DECAL - steering console (Not used)

1шт.

321-5792

DECAL - 12 speed chart (Not used)

1шт.

321-5627

DECAL - 12 speed chart (Not used)

1шт.

321-5626

DECAL - 8 speed chart (Not used)

1шт.

321-5861

DECAL - fuse location (On firewall)

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover)

1шт.
