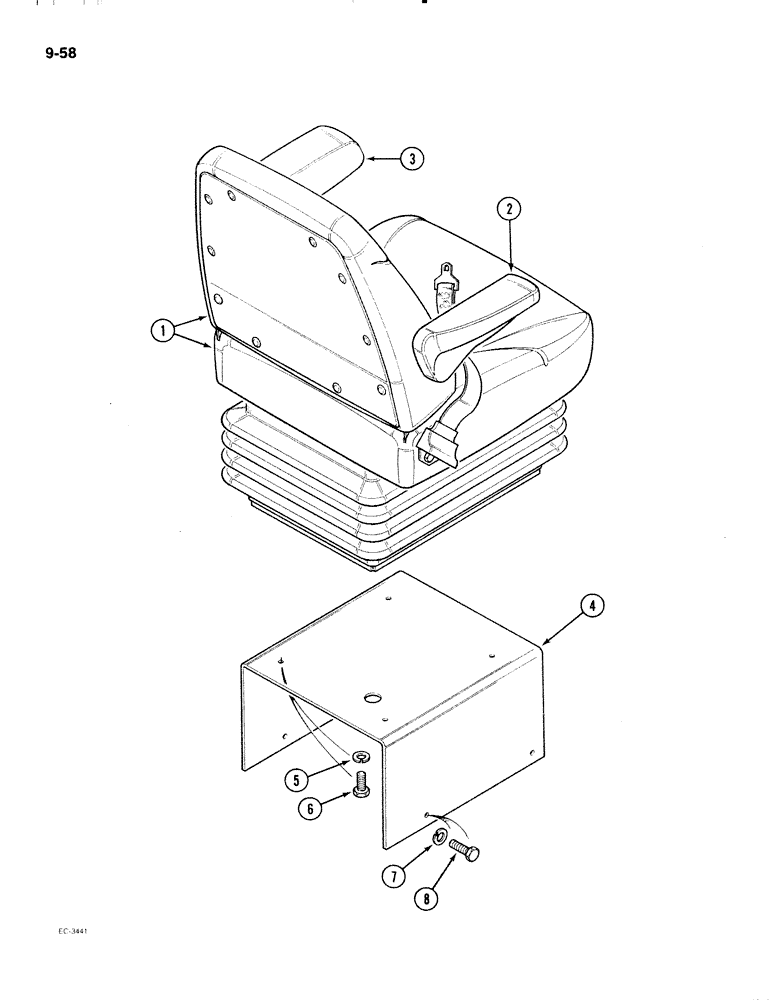

Запчасти Case IH 2096 (9-058) - SEAT, MECHANICAL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1343073C1

SEAT

ASSEMBLY - mechanical, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

KIT - cushion and backrest (Order 1343073C1)

1шт.

2

1974703C1

SET OF PARTS

KIT - armrest, right, includes armrest assembly and drive pin

1шт.

NSS

NOT SOLD SEPARAT

ARMREST ASSEMBLY - right (Order 1974703C1)

1шт.

NSS

NOT SOLD SEPARAT

PIN - drive (Order 1974703C1)

1шт.

3

1981818C1

ARMREST

KIT - armrest, left, includes armrest assembly and drive pin

1шт.

NSS

NOT SOLD SEPARAT

ARMREST ASSEMBLY - left (Order 1981818C1)

1шт.

NSS

NOT SOLD SEPARAT

PIN - drive (Order 1981818C1)

1шт.

4

1975275C1

CHANNEL

ASSEMBLY - seat mounting

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

7

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.
