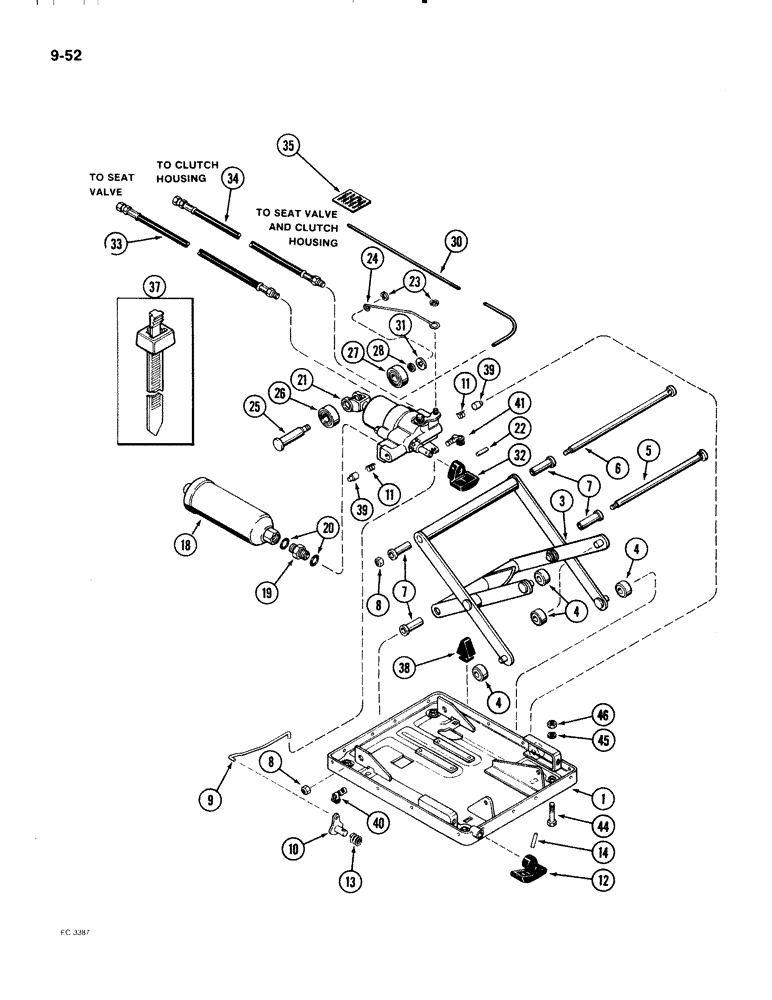

Запчасти Case IH 2096 (9-052) - SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

ASSEMBLY - air/oil suspension, Includes: hydraulic suspension assembly and Ref. 1 - 41 in this figure and parts in Figures 9-046 thru 9--050

1шт.

A49817

SUSPENSION

ASSEMBLY - hydraulic (Later production), Includes: Ref. 1 - 41 in this figure and parts in Figures 9-048 and 9-050

1шт.

1

A49524

HOUSING

ASSEMBLY - suspension, lower

1шт.

3

A49526

ARM

ASSEMBLY - suspension

1шт.

4

A49527

ROLLER

- suspension

4шт.

5

A49528

SHAFT

- torque tube

1шт.

6

A49529

SHAFT

- scissor arm

1шт.

7

A47760

BUSHING

- shaft

4шт.

8

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

1971234C1

CLIP

WIRE - control, suspension (Early production)

1шт.

9

A49532

CABLE

WIRE - control, suspension (Later production)

1шт.

10

A49535

LEVER

CONTROL ASSEMBLY - height adjustment

1шт.

11

A49537

SPRING

- control

2шт.

12

A49829

HANDLE

- height adjustment (Later production)

1шт.

12

A49536

HANDLE

- height adjustment (Early production)

1шт.

13

A49538

SPRING

- control

1шт.

14

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

NSS

NOT SOLD SEPARAT

MODULE ASSEMBLY - hydraulic, final, Includes: Ref. 18 - 35

1шт.

18

A49617

ACCUMULATOR

- module

1шт.

19

A49620

FITTING

UNION - straight

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

21

A49828

CYLINDER

ASSEMBLY - module (See Figure 9-054)

1шт.

22

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

23

A49623

RING, SNAP

RING - retaining

2шт.

24

A49615

ROD

- linkage, valve

1шт.

25

A49613

SHAFT

- cam roller

1шт.

26

A49614

ROLLER BEARING,17 mm ID x 44.48 mm OD x 12 mm

BEARING - roller

2шт.

27

A49616

NEEDLE BEARING,16.99mm ID x 40mm OD x 20mm W

BEARING - follower, cam

1шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

30

A49609

HOSE,0.38" ID x 39.00"

- Drain

1шт.

31

95-81077

WASHER,0.39" ID x 0.62" OD x 0.07" Thk

- flat, 25/64 x 5/8 x 1/16 inch

1шт.

32

A49827

BUTTON

KNOB - damper valve

1шт.

33

A176631

HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1

6.35 mm ID x 63.00 mm, SAE 100R1 - Pressure, Seat

1шт.

34

A176632

HOSE ASSY.

HOSE - return, seat

1шт.

35

A49621

DECAL

LABEL - supply, pressure

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

38

A49530

INSULATOR BLOCK

BUMPER - suspension

2шт.

39

A49531

PIN

- trunnion

2шт.

40

A49533

HOSE

CLIP - retaining, left

1шт.

41

A49534

CLIP

- retaining, right

1шт.

44

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

46

131-205

LOCK NUT,5/16"-18

NUT - hex, self-locking, 5/16 inch NC

4шт.
