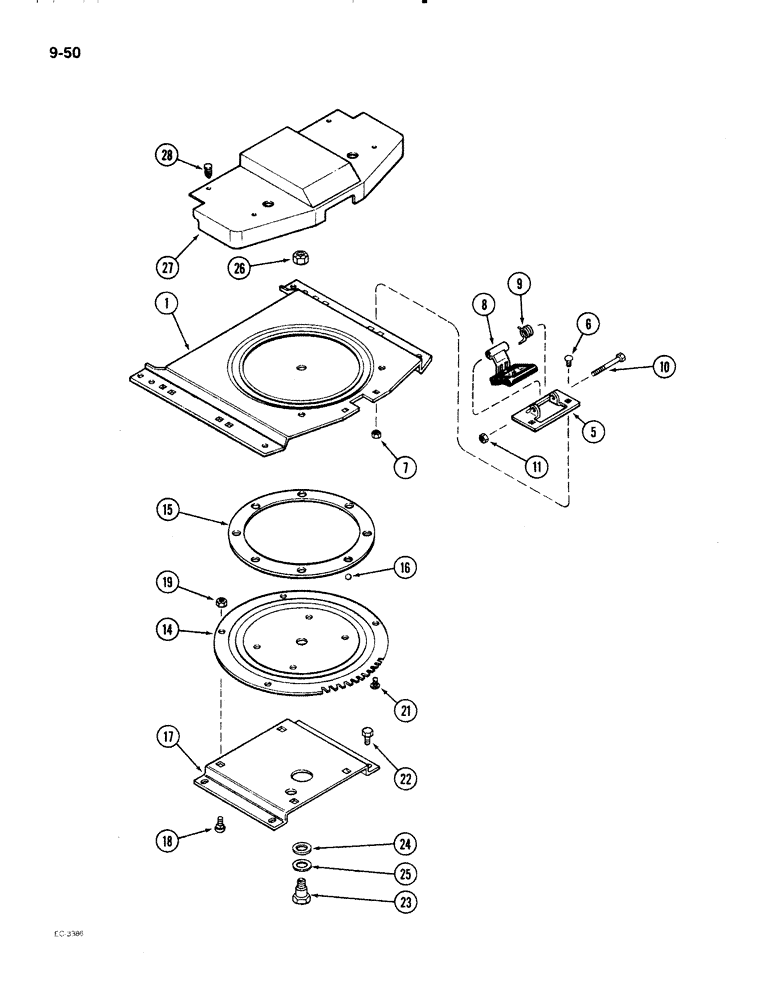

Запчасти Case IH 2096 (9-050) - SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

ASSEMBLY - air/oil suspension, Includes: hydraulic suspension assembly, later and early production seat isolator assemblies, seat swivel assembly and Ref. 1 - 28 in this figure and parts in Figures 9-046, 9-048 and 9-052

1шт.

A49817

SUSPENSION

ASSEMBLY - hydraulic (Later production), Includes: later and early production seat isolator assemblies, seat swivel assembly and Ref. 1 - 26 in this figure and parts in Figures 9-048 and 9-052

1шт.

A49818

HOUSING

ISOLATOR ASSEMBLY - seat (Later production), Includes: seat swivel assembly and Ref. 1 - 26 in this figure and parts in Figure 9-048

1шт.

A49525

SEAT

ISOLATOR ASSEMBLY - seat (Early production), Includes: seat swivel assembly and Ref. 1 - 26 in this figure and parts in Figure 9-048

1шт.

A49822

PLATE

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 26

1шт.

1

A49551

PLATE

- top, swivel

1шт.

5

A49830

SUPPORT

BRACKET - latch, swivel

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A49831

LATCH

- swivel

1шт.

9

A49554

SPRING

- latch

1шт.

10

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

14

A49556

PLATE

- latch

1шт.

15

A49555

LARGE PLATE

RETAINER - ball

1шт.

16

211-315

BALL,1/2" Dia

- 1/2 inch, grade 100, carbon steel

8шт.

17

A49557

PLATE

- mounting, swivel

1шт.

18

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - carriage, 3/8 NC x 3/4 inch, grade 2

4шт.

19

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

21

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

4шт.

22

113-290

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

- hex, 3/8 NC x 5/8 inch

2шт.

23

A49558

BOLT

- shoulder

1шт.

24

A49559

WASHER

- nylon, shoulder bolt

1шт.

25

F15105

WASHER

- thrust

1шт.

26

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

1шт.

27

A180423

SHROUD

- swivel (Later production)

1шт.

28

A49622

CLIP

- retaining (Later production)

4шт.
