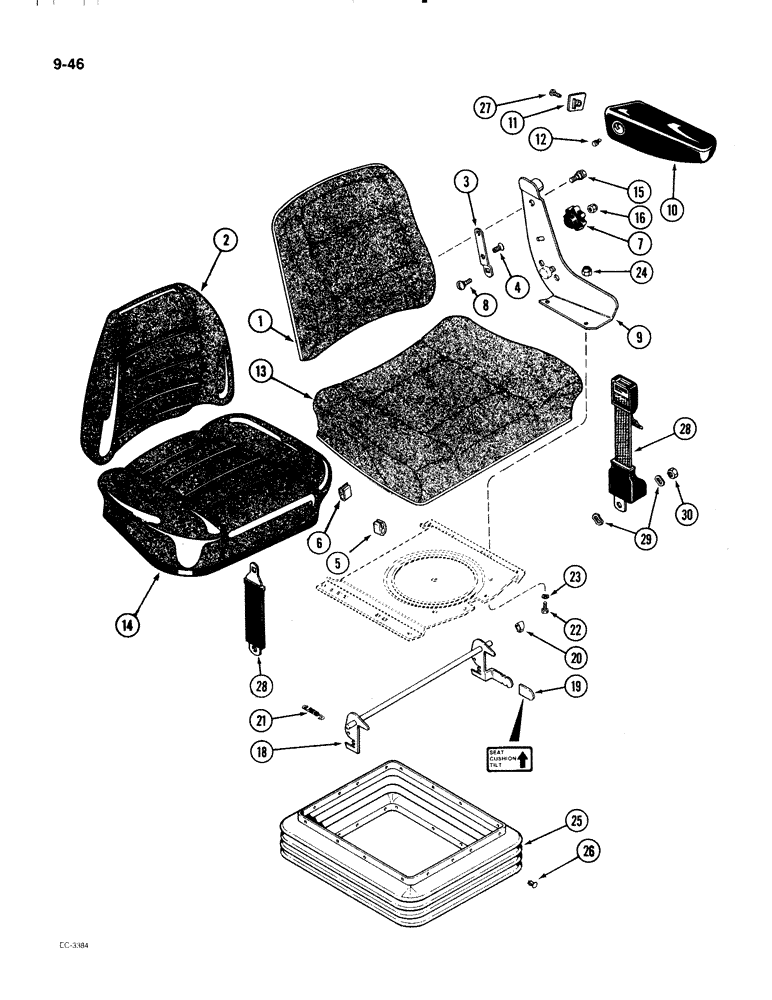

Запчасти Case IH 2096 (9-046) - SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340261C1

SEAT

ASSEMBLY - air (See Figure 9-056)

1шт.

A181028

SEAT

ASSEMBLY - air/oil suspension, Includes: Ref. 1 - 30 in this figure and parts in Figures 9-048 thru 9-052

1шт.

1

A49826

SEAT

CUSHION - backrest (Later production)

1шт.

Part of Seat Cushion Kit, P/N 1330898C1

1шт.

2

A49521

BACKREST

CUSHION - backrest (Early production)

1шт.

3

A48343

LINK

- tilt, backrest

2шт.

Part of Seat Cushion Kit, P/N 1330898C1

1шт.

4

187-1270

SELF-TAP SCREW,Flat, 3/8" - 18 x 1"

SCREW - self-tapping, flat Phillips, 3/8 NC x 1 inch

2шт.

Part of Seat Cushion Kit, P/N 1330898C1

1шт.

5

N9034

SEAT

CLIP - retaining, seat cushion

2шт.

6

N6674

CLIP

- retaining, seat cushion

2шт.

7

A45487

BUTTON

KNOB - tilt, backrest

2шт.

8

A45527

CARRIAGE BOLT

- retaining, link

2шт.

9

A49517

BRACKET

- armrest, right

1шт.

9

A49516

BRACKET

- armrest, left

1шт.

10

A49515

ARMREST

- seat, right

1шт.

10

A49514

ARMREST

- seat, left

1шт.

11

A45584

COVER

PLATE - cover, right armrest

1шт.

11

A45583

PLATE

- cover, left armrest

1шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

13

A49825

SEAT

CUSHION - seat (Later production)

1шт.

Part of Seat Cushion Kit, P/N 1330898C1

1шт.

14

A49520

CUSHION

- seat (Early production)

1шт.

15

A48346

BOLT

- special, back tilt

2шт.

15

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - special, seat tilt

2шт.

16

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

18

A49518

LEVER

TILT ASSEMBLY - seat

1шт.

19

A47347

CAP

- tilt lever

1шт.

20

A49519

SPACER

- lever

2шт.

21

NLS

NO LONGER SERVICED

- tension, tilt lever

2шт.

22

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

23

A47352

WASHER

- wave, 1-1/8 inch ID

4шт.

24

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

25

A49618

BOOT

- rubber

1шт.

26

A49658

FASTENER

CLIP - canoe

28шт.

27

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10 x 5/8 inch

2шт.

28

A46982

SAFETY BELT

SAFETY BELT

1шт.

29

A46987

WASHER

- wave

4шт.

30

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

2шт.

1330898C1

CUSHION

KIT - seat cushion, Includes: Ref. 1, 3, 4 and 13

1шт.
