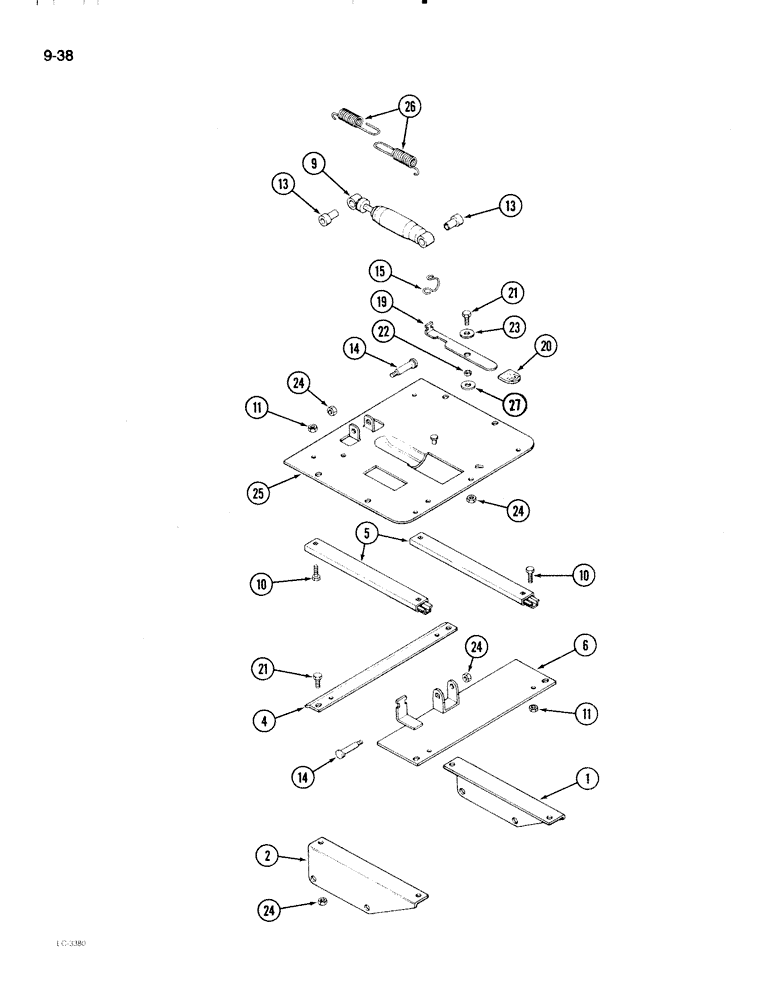

Запчасти Case IH 2096 (9-038) - CLOTH SEAT, WITH ISOLATOR (09) - CHASSIS/ATTACHMENTS

A177452

SEAT

ASSEMBLY - operator, complete with suspension unit, Includes: Ref. 1 - 27 in this figure and parts in Figures 9-036 and 9-040

1шт.

1

A48349

ADAPTER

- slide, left

1шт.

2

A48350

ADAPTER

- slide, right

1шт.

A48348

ISOLATOR ASSEMBLY - fore and aft, Includes: Ref. 4 - 27

1шт.

4

A48357

BAR

- adjuster, slide

1шт.

5

A49512

SLIDE

- isolator

1шт.

6

A48359

BRACKET

- lower

1шт.

9

A48355

SHOCK ABSORBER

ABSORBER - shock, isolator

1шт.

10

113-168

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- hex, 5/16 NC x 5/8 inch

4шт.

10

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

4шт.

11

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

13

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

- shock absorber

2шт.

14

A45056

STEP BOLT

BOLT - shoulder, shock absorber

2шт.

15

A48351

SPRING

- isolator

1шт.

19

A48352

LATCH

- isolator

1шт.

20

A48353

CAP

- isolator latch

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

22

A48224

BUSHING

SPACER - latch

1шт.

23

A45519

WASHER

- flat, 33/64 x 1-1/8 x 1/16 inch

1шт.

24

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

5шт.

25

A48354

PLATE

- top

1шт.

26

A48356

SPRING

- shock absorber

1шт.

27

A49513

WASHER

- thrust

1шт.
