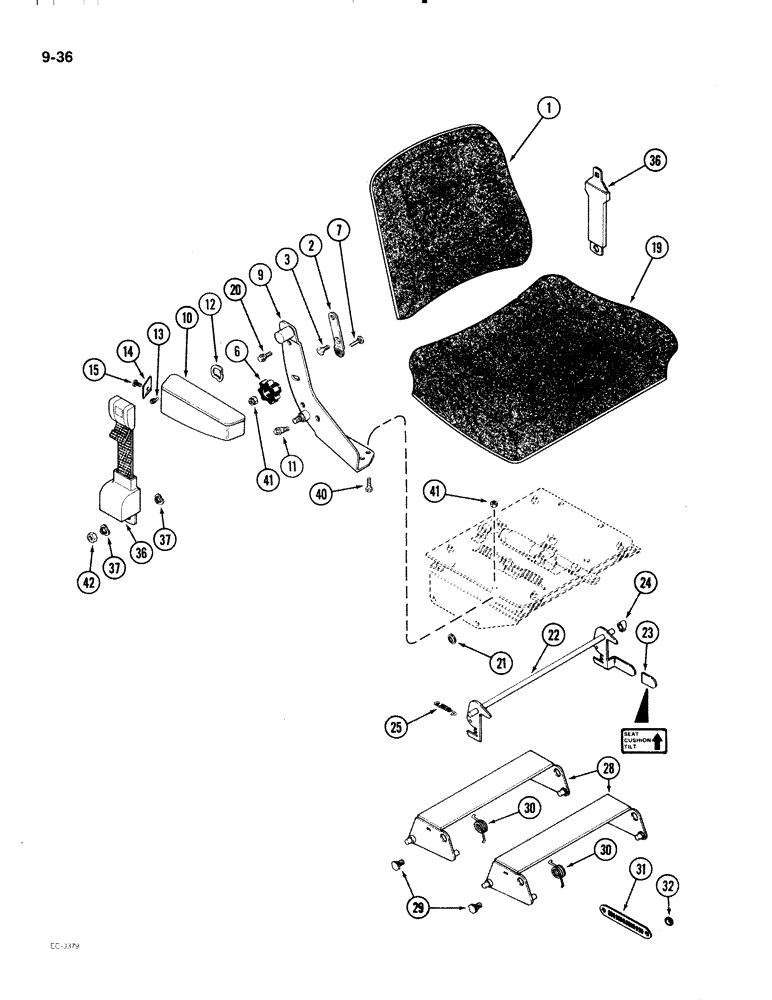

Запчасти Case IH 2096 (9-036) - CLOTH SEAT, WITH ISOLATOR (09) - CHASSIS/ATTACHMENTS

A177452

SEAT

ASSEMBLY - operator, complete with suspension unit, Includes: seat backrest assembly and Ref. 1 - 42 in this figure and parts in Figures 9-038 and 9-040

1шт.

A46998

CUSHION

BACKREST ASSEMBLY - seat, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A46998)

1шт.

Part of Seat Cushion Kit P/N 1990559C1

1шт.

2

A48343

LINK

- tilt, backrest

2шт.

3

187-1270

SELF-TAP SCREW,Flat, 3/8" - 18 x 1"

SCREW - flat head, 3/8 NC x 1 inch

2шт.

6

A45487

BUTTON

KNOB - tilt, backrest

2шт.

7

A45527

CARRIAGE BOLT

- retaining, link

2шт.

9

A46909

BRACKET

- armrest, right

1шт.

9

A46910

BRACKET

- armrest, left

1шт.

1987125C1

ARMREST ASSY.

KIT - armrest, Includes: Ref. 10

1шт.

10

A45489

ARMREST

- right

1шт.

10

A45488

ARMREST

- left

1шт.

11

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT - hex, special

2шт.

12

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

14

A45584

COVER

PLATE - right armrest

1шт.

14

A45583

PLATE

COVER PLATE - left armrest

1шт.

15

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10-16 x 5/8 inch

2шт.

19

A46990

CUSHION

- seat

1шт.

Part of Seat Cushion Kit P/N 1990559C1

1шт.

20

A48346

BOLT

- hex, special

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

22

A47346

LEVER

- seat assembly tilt

1шт.

23

D82870

KNOB

CAP - tilt lever

1шт.

24

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

25

A45471

- tension, tilt lever shaft

2шт.

28

A47379

LINK

- cross, seat mounting

2шт.

29

A45473

STEP BOLT

BOLT - special

4шт.

30

D82863

SPRING

- torsion

2шт.

31

D82860

LINK

- connecting

2шт.

32

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

36

A46982

SAFETY BELT

SAFETY BELT

1шт.

37

A46987

WASHER

- wave

4шт.

40

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

41

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

6шт.

42

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

2шт.

1990559C1

CUSHION

KIT - seat cushion, Includes: Ref. 1, 2 and 19

1шт.
