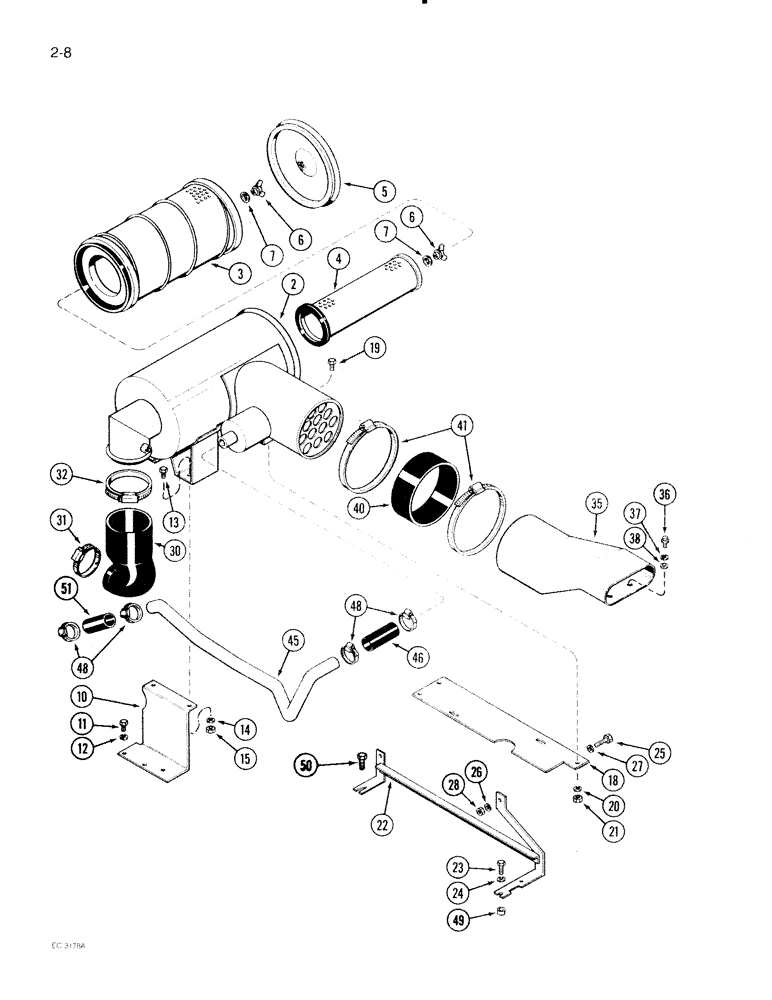

Запчасти Case IH 2096 (2-008) - AIR INDUCTION SYSTEM, 6TA-590 ENGINE (02) - ENGINE

A171948

CLEANER

ASSEMBLY - air, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A171253

FILTER, ELEMENT

ELEMENT - primary

1шт.

3

A172234

FILTER, ELEMENT

ELEMENT - primary (Optional A171253)

1шт.

4

A171254

FILTER, ELEMENT

ELEMENT - secondary

1шт.

5

A49468

COVER

- element

1шт.

F91761

WING NUT

ASSEMBLY - wing, element retaining, Includes: Ref. 6 and 7

1шт.

6

D37977

CAP

NUT - wing, element retaining

1шт.

7

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- element retaining nut

1шт.

10

A180114

SUPPORT

- mounting, air cleaner

1шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

14

892-11010

LOCK WASHER,M10

4шт.

15

825-1410

NUT,M10, Cl 8

4шт.

18

A180931

SUPPORT

- mounting, air cleaner and muffler

1шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

20

892-11010

LOCK WASHER,M10

1шт.

21

825-1410

NUT,M10, Cl 8

1шт.

22

A180197

BRACKET

- air cleaner and harness

1шт.

23

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 35 mm

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 35 mm

1шт.

26

892-11010

LOCK WASHER,M10

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

28

825-1410

NUT,M10, Cl 8

1шт.

30

A180067

INTAKE AIR HOSE,103.00 mm ID, 75.00 mm ID x 145.00 mm, SAE J200

- Cleaner to turbocharger 103.00 mm ID, 75.00 mm ID x 145.00 mm, SAE J200

1шт.

31

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adj, 3-1/16 - 4 inch dia

1шт.

32

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj, 4-1/16 - 5 inch dia

1шт.

35

A176082

DUCT

- air intake

1шт.

36

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

40

A170581

INTAKE AIR HOSE,167.00 mm ID x 65.00 mm, SAE J200

- Air cleaner inlet 167.00 mm ID x 65.00 mm, SAE J200

1шт.

41

214-282

HOSE CLAMP,#112, 6.62" - 7.5", Type F Worm

CLAMP - adj, 6-5/8 - 7-1/2 inch dia

2шт.

45

A177770

TUBE

- aspirator

1шт.

46

A161681

HOSE,31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

- Aspirator tube (Exhaust pipe to aspirator) 31.80 mm ID x 95.20 mm, SAE 20R1 Class A per SAE J20E

1шт.

48

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - adj, 13/16 - 1-3/4 inch dia

4шт.

49

A169245

SPACER

- air cleaner mounting bracket

2шт.

50

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

51

A160028

HOSE,1.25" ID x 3.75", SAE 20R1 PER SAE J20

1.25" ID x 3.75", SAE J20 - Aspirator tube (Air cleaner to aspirator)

1шт.
