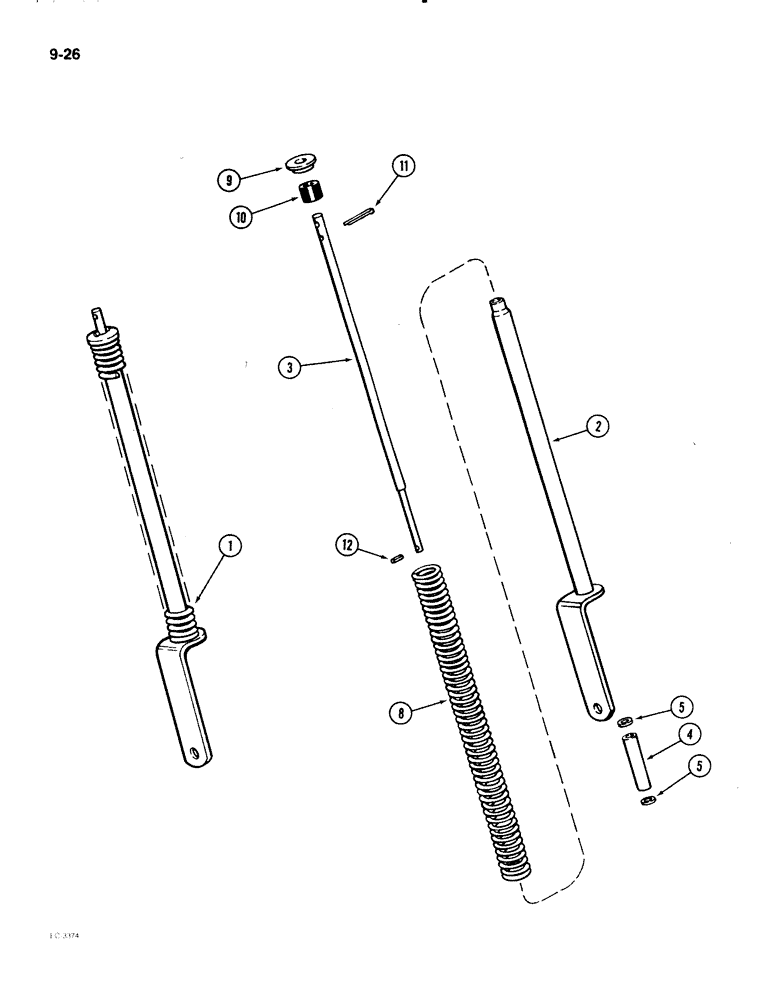

Запчасти Case IH 2096 (9-026) - HOOD LIFT CYLINDER, EARLY PRODUCTION TRACTORS (09) - CHASSIS/ATTACHMENTS

1

A147817

GAS STRUT,952.5mm Extended, 609.6mm Compressed

ASSEMBLY - hood lift, Includes: Ref. 2 - 12

2шт.

2

A147818

CYLINDER

- hood lift

1шт.

3

A147821

CYLINDER

SHAFT - cylinder

1шт.

4

A147819

PISTON ASSY.

PISTON - lift cylinder

1шт.

5

495-31038

WASHER,9.53mm ID x 18.64mm OD x 1.65mm Thk

- flat, 3/8 x 47/64 x 1/16 inch

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING - hood lift (Order A147817)

1шт.

9

A147820

RETAINER

- lift spring

1шт.

10

A166395

SEAL

- bumper

1шт.

11

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.
