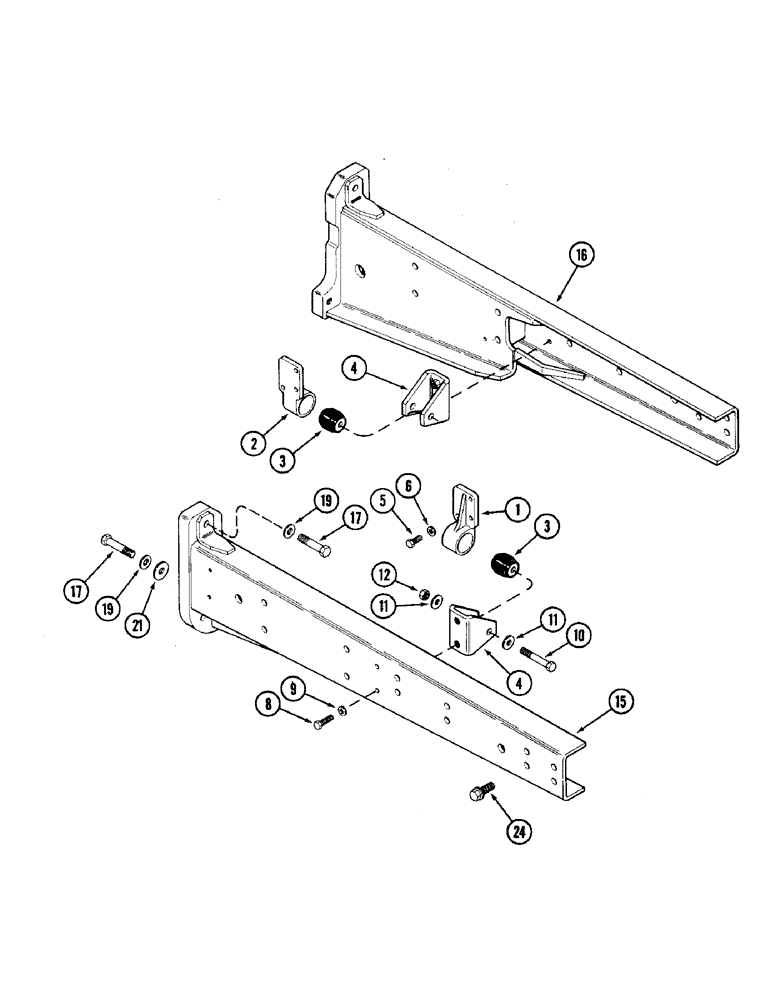

Запчасти Case IH 2096 (9-020) - ENGINE MOUNTS AND SIDE RAILS (09) - CHASSIS/ATTACHMENTS

1

A181071

MOUNTING PARTS

MOUNT ASSEMBLY - engine, right, Includes: Ref. 3

1шт.

2

A181072

MOUNTING PARTS

MOUNT ASSEMBLY - engine, left, Includes: Ref. 3

1шт.

3

A167825

MOUNTING PARTS

MOUNT - rubber, engine (With A181071 and A181072)

1шт.

4

A176503

BRACKET

- engine mount

2шт.

5

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex flange, 12 - 1.75 x 35 mm, class 10.9

6шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

6шт.

8

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

10

813-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

- hex, 16 - 2 x 100 mm

2шт.

11

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

4шт.

12

825-1016

NUT,M16, Cl 8

- hex, 16 mm - 2

2шт.

15

A177612

RAIL

- side, right

1шт.

16

A185766

RAIL

- side, left (Replaces A177613)

1шт.

17

826-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

- hex, 20 - 2.5 x 85 mm, class 10.9

8шт.

19

A177650

WASHER

- flat hardened, 20 mm

8шт.

21

95-81183

WASHER,13/16" x 1 7/8" x .148", HDN

- flat, 13/16 x 1-7/8 x 5/32 inch

4шт.

24

A169100

BOLT

- hex flanged, 16 mm x 66 mm, class 10.9

16шт.
