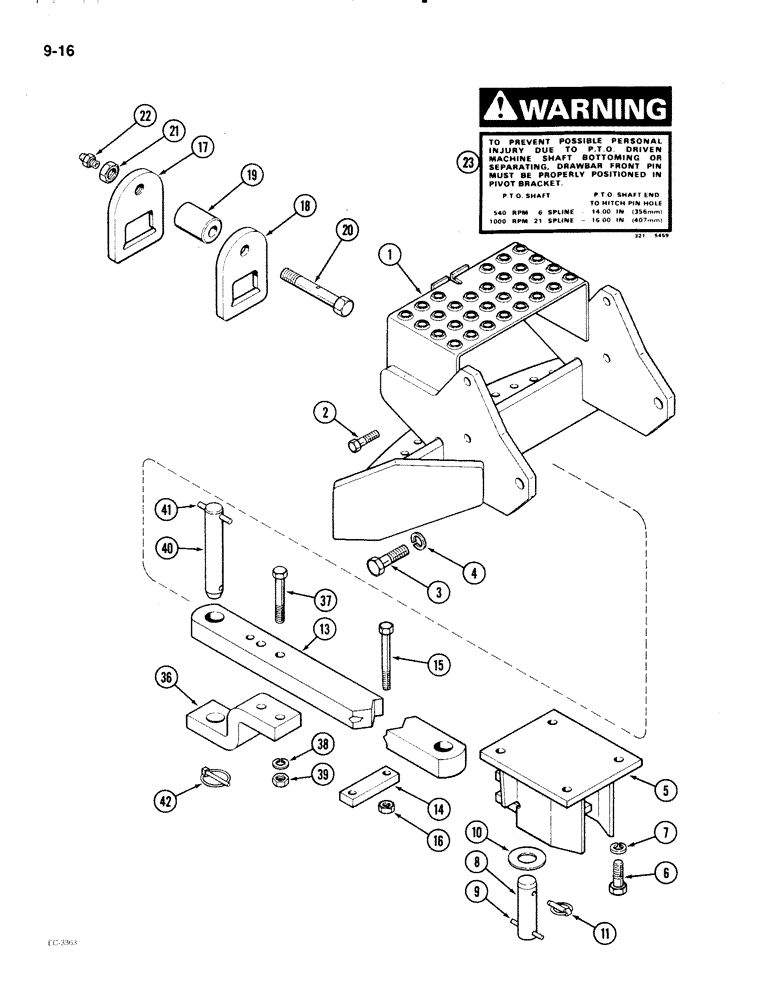

Запчасти Case IH 2096 (9-016) - DRAWBAR, SPECIAL WIDE SWING, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A176395

BRACKET

- support, swinging drawbar

1шт.

2

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

3

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- hex, 1 NC x 3 inch

2шт.

4

492-11100

LOCK WASHER,1"

1"

2шт.

5

A160820

BRACKET

- front support and pivot

1шт.

6

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

7

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

8

A160831

PIN

ASSEMBLY - pivot, Includes: Ref. 9

1шт.

9

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

10

A160830

WASHER

- pivot pin

1шт.

11

D33805

PIN

- klik

1шт.

13

A160824

DRAWBAR, SWINGING

DRAWBAR - tractor

1шт.

14

A63600

STRAP

- clamp, drawdar

1шт.

15

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- hex, 5/8 NC x 5-3/4 inch

2шт.

16

25-1010

NUT,5/8"-11, G5

2шт.

A67176

ROLLER

ASSEMBLY - drawbar, Includes: Ref. 17 - 22

1шт.

17

A135433

PLATE

BRACKET - threaded, drawbar hanger

1шт.

18

A65754

PLATE

BRACKET - hanger, drawbar

1шт.

19

A135435

ROLLER

- drawbar

1шт.

20

A135434

BOLT

- roller

1шт.

21

25-1016

NUT,1"-8, G5

1шт.

22

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 27/32 inch long

1шт.

23

321-5459

DECAL

- warning, PTO/drawbar pin

1шт.

A61836

KIT

YOKE ATTACHMENT - drawbar, wideswing, Includes: Ref. 36 - 42

1шт.

36

A61557

DRAWBAR CLAMP

STRAP - drawbar yoke

1шт.

37

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

2шт.

38

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

39

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

A65760

PIN

ASSEMBLY - drawbar, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

PIN - drawbar (Order A65760)

1шт.

41

138-326

LOCK PIN,3/8" x 3 1/4", Slotted

Pin, 3/8" x 3 1/4", Slotted

1шт.

42

A61560

LOCK PIN

PIN - klik

1шт.
