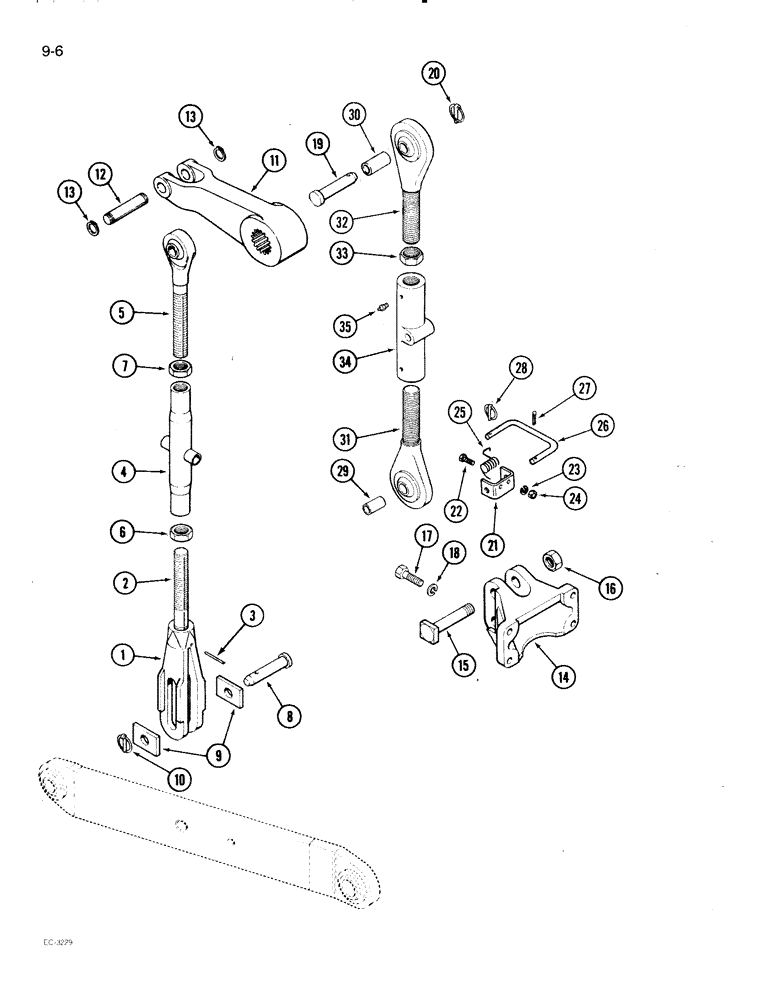

Запчасти Case IH 2096 (9-006) - HITCH LIFT LINKS, PRIOR TO P.I.N. 9939634 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A137947
YOKE
ASSEMBLY - lift link, Includes: Ref. 1 - 3
2шт.
1
A137078
YOKE
- lift link
1шт.
2
A137948
SCREW,Yoke, 1 1/4" - 12 x 6"
- yoke
1шт.
3
138-160
LOCK PIN,5/16" x 2", Slotted
Pin, 5/16" x 2", Slotted
1шт.
4
A137080
TURNBUCKLE
- adjusting, lift link
2шт.
5
A137949
LIFT LINK END ASSY
- upper link
2шт.
6
129-172
NUT,Jam, 1 1/4"-12, G5
- hex, 1-1/4 inch NF
2шт.
7
129-372
NUT,Jam, 1 1/4"-12, G5, LH
- hex, 1-1/4 inch NF (Left hand thread)
2шт.
8
A67342
PIN
- yoke, lift link
2шт.
9
A67343
PLATE
- stop, lower link pin
4шт.
10
A64204
PIN
- klik
2шт.
11
A177253
LIFT ARM
ARM - lift, rockshaft
2шт.
12
A177258
PIN
- link to lift arm
2шт.
13
A34428
SNAP RING,#98, Ext
Ring, Snap, #98, Ext
4шт.
14
A165800
BRACKET
- mounting, turnbuckle
1шт.
15
A164279
BOLT,1" - 8 x 5", Gr 8
- square head, 1 NC x 5 inch
1шт.
16
131-1184
LOCK NUT,1"-8, GA
NUT - hex, self-locking, 1 inch NC
1шт.
17
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
4шт.
18
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
19
A33432
PIN
- implement, upper link
1шт.
20
A64204
PIN
- klik
1шт.
21
A163821
BRACKET
- upper link storage
1шт.
22
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
23
492-11038
LOCK WASHER,3/8"
2шт.
24
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
25
Not used in this application
1шт.
26
A163822
HOOK
- storage, upper link
1шт.
27
132-312
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
1шт.
28
A33497
LINCH PIN,4.76mm OD Pin
PIN - klik
1шт.
29
A33499
ADAPTER
- upper hitch pin (Cat I)
1шт.
30
A33498
ADAPTER
- lower hitch pin (Cat I)
1шт.
31
A162914
ROD
SCREW - turnbuckle, lower
1шт.
32
A162915
ROD
SCREW - turnbuckle, upper
1шт.
33
425-1524
JAM NUT,Jam, 1 1/2"-12, G5
- hex, 1-1/2 inch NF
1шт.
34
A160905
TURNBUCKLE
- adjusting
1шт.
35
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
2шт.
Выбрано товаров: 36
