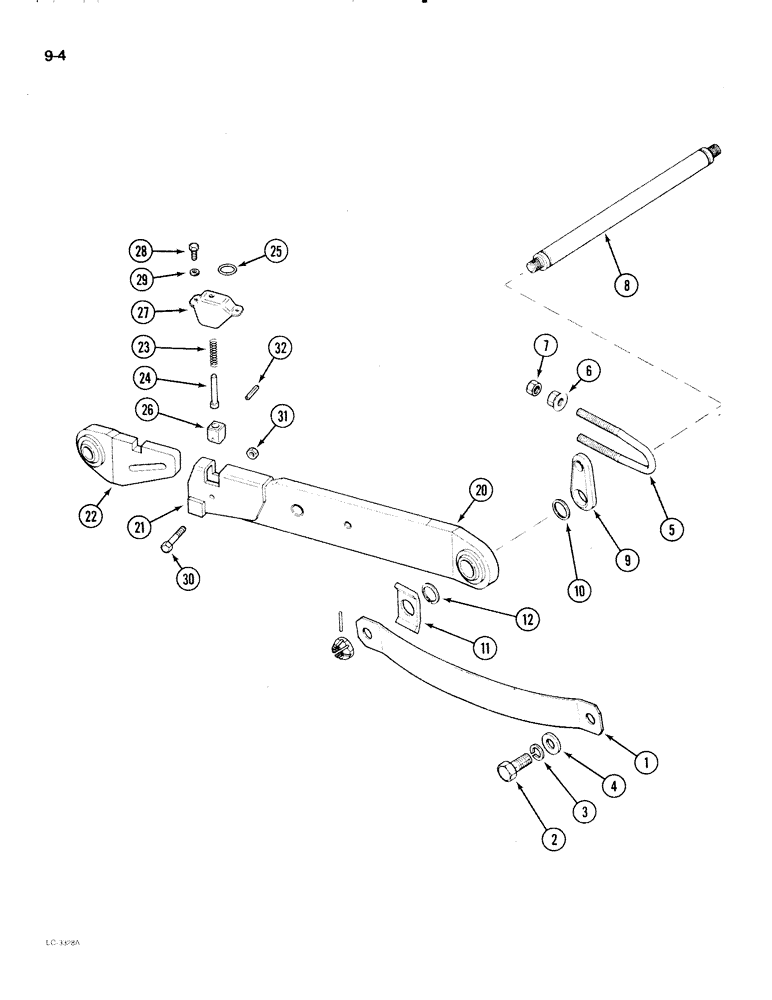

Запчасти Case IH 2096 (9-004) - HITCH SPRINGS, LINKS AND SHAFT, TELESCOPIC LINKS (09) - CHASSIS/ATTACHMENTS

1

A145753

SPRING

- sensing

2шт.

2

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

2шт.

3

492-11100

LOCK WASHER,1"

1"

2шт.

4

95-81187

WASHER,1 1/32" x 2" x .238"

- flat, 1-1/32 x 2 x 1/4 inch

2шт.

5

A162689

BOLT

U-BOLT - 3/4 inch NC

2шт.

6

131-935

FLANGE NUT,Flg, 3/4"-10, G8

- hex flange, 3/4 inch NC

4шт.

7

131-1338

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

4шт.

8

A176923

BEAM

SHAFT - cross, draft arm and sending spring

1шт.

9

A167660

LINK

- support, cross-shaft

2шт.

10

A167661

WASHER

- spacer, draft arm ball

1шт.

11

A167662

PLATE

SPACER - sensing spring rear

2шт.

12

A167663

RING

- retaining, spacer mounting

2шт.

13

A33404

NUT

- retaining, cross-shaft

2шт.

14

138-2014

PIN,3/16" x 1 7/8", Coiled

2шт.

20

A185780

ARM ASSY.

LINK - telescoping, lower right, Includes: Ref. 21 - 32

1шт.

20

A185781

ARM ASSY.

LINK - telescoping, lower left, Includes: Ref. 21 - 32

1шт.

21

1348084C1

LOWER LINK

LINK ASSEMBLY - front section, right

1шт.

21

1348085C1

LOWER LINK

LINK ASSEMBLY - front section, left

1шт.

22

1348086C1

LOWER LINK

LINK ASSEMBLY - rear section, right

1шт.

22

1348087C1

LOWER LINK

LINK ASSEMBLY - rear section, left

1шт.

23

1331904C1

SPRING

- lower link latch

1шт.

24

1965345C1

CLEVIS PIN

PIN - clevis

1шт.

25

1965556C1

RING

- spring latch

1шт.

26

1348089C1

BLOCK

- latch

1шт.

27

1348088C1

COVER

- latch

1шт.

28

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 16 mm, class 10.9

2шт.

29

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 2 mm, hardened

2шт.

30

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10-1.5 x 65 mm, class 10.9

1шт.

31

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

1шт.

32

838-3330

PIN,M3 x 30, Coiled

- coiled spring, 3 mm x 30 mm

1шт.
