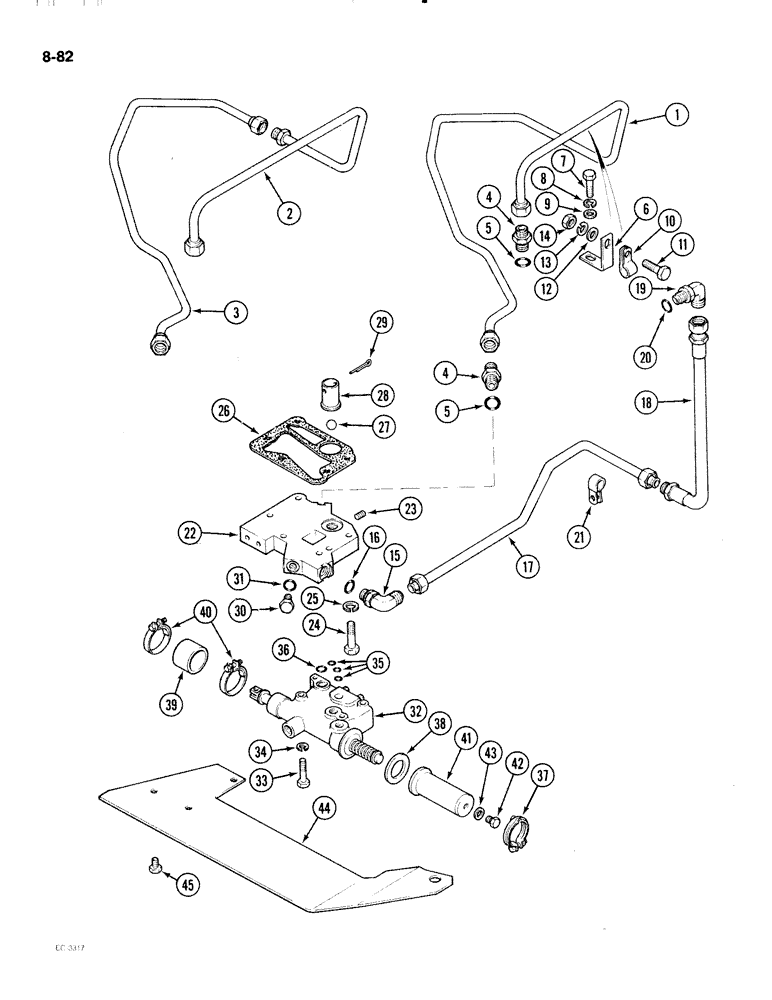

Запчасти Case IH 2096 (8-082) - HITCH CONTROL VALVE, MANIFOLD AND TUBES (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

TUBE - manifold to lift cylinder (J I Case installed) (Order Ref. 2 and 3)

1шт.

2

A177608

TUBE

- manifold to lift cylinder, upper half

1шт.

3

A177609

TUBE

- manifold to lift cylinder, lower half

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

A177328

BRACKET

- tube clamp

1шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

8

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

95-81159

WASHER,3/8" x 7/8" x .083"

- flat, 3/8 inch

1шт.

10

A177329

CLAMP

- tube

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

12

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

1шт.

13

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

15

A181670

ELBOW,90 Degree, 1 1/16"-12 37 Degree x 7/8"-14, O-Ring

90 degree, 7/8 NF x 1-1/16 inch NF, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

A181635

TUBE

- remote to hitch manifold

1шт.

18

D42600

HOSE

- remote to hitch manifold

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

21

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter

1шт.

22

A161770

BODY

MANIFOLD - depth control valve

1шт.

23

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

5шт.

25

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

26

A185804

MANIFOLD GASKET

- cover, manifold to transmission case

1шт.

27

211-19

BALL,7/8" Dia

- 7/8 inch, grade 200, chrome alloy steel

1шт.

28

A63458

TUBE

- return oil

1шт.

29

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

30

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 31 Hex Soc, 3/4"-16 ORB

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

A143713

VALVE

ASSEMBLY - hitch control (See Figure 8-084)

1шт.

33

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

4шт.

34

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3шт.

36

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

37

A63475

CLAMP,50.29mm ID

- cover

1шт.

38

A65542

GASKET

- cover

1шт.

39

A63472

HOSE

- control valve to linkage housing

1шт.

40

214-24

CLAMP

- adj, 1-7/8 - 2-3/32 inch dia.

2шт.

41

A167785

COVER

- valve spool

1шт.

42

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

- hex, 1/4 NC x 3/8 inch

1шт.

43

195-1013

SEALING WASHER,0.26" ID x 0.56" OD x 0.04" Thk

- flat, 1/4 x 9/16 3/64 inch

1шт.

A67514

KIT- guard, draft control valve, Includes: Ref. 44 and 45

1шт.

44

A162528

GUARD

- valve

1шт.

45

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.
