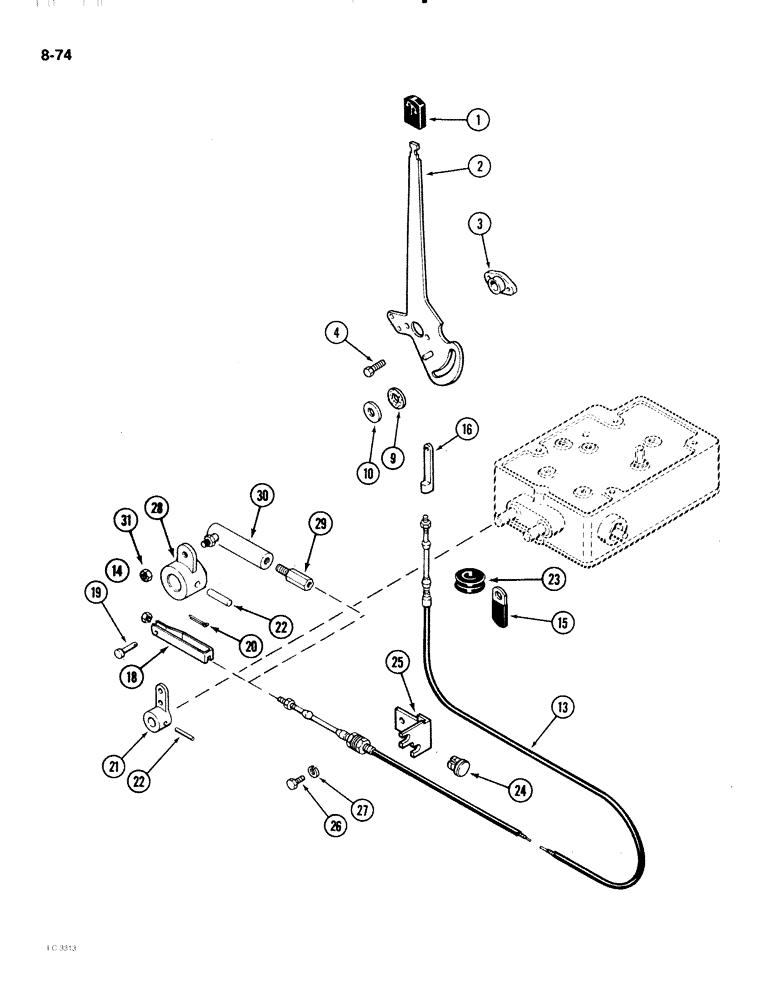

Запчасти Case IH 2096 (8-074) - DEPTH SENSING CONTROL LINKAGE (08) - HYDRAULICS

1

A163885

KNOB

- hand lever (Black)

1шт.

2

A163881

LEVER

- hand

1шт.

3

A162901

BUSHING

BEARING - sensing lever

1шт.

4

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

9

A61069

DISC

- friction

1шт.

10

495-81149

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 3/32 inch

1шт.

13

A167658

CABLE

- hitch control

1шт.

Part of Draft Sensing Control Kit, P/N 1344065C1

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No.10 NF (Order 1344065C1)

1шт.

15

A37179

CLIP

CLAMP - cable, transmission

1шт.

16

A162855

YOKE

- cable, hand lever

1шт.

18

A160819

YOKE

- cable, lower (Order 1344065C1)

1шт.

19

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 37/64 inch, hardened (Order 1344065C1)

1шт.

20

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), (Order 1344065C1) 1/16" x 3/4"

1шт.

21

A156185

LEVER

- control valve (Order 1344065C1)

1шт.

22

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

Part of Draft Sensing Control Kit, P/N 1344065C1

1шт.

23

A145925

GROMMET

- cable

1шт.

24

A162961

PLUG

- 3/4 inch diameter head

1шт.

25

A160811

BRACKET

- control cable

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

1340002C1

LEVER

ASSEMBLY - sensing (With Ref. 29, 30 and 31 replaces A156185)

1шт.

Part of Draft Sensing Control Kit, P/N 1344065C1

1шт.

29

1344092C1

SPACER

- ball joint (With Ref. 28, 30 and 31 replaces A160819)

1шт.

Part of Draft Sensing Control Kit, P/N 1344065C1

1шт.

30

1340479C1

BALL JOINT

JOINT ASSEMBLY - ball (With Ref. 28, 29 and 31 replaces A160819)

1шт.

Part of Draft Sensing Control Kit, P/N 1344065C1

1шт.

31

193-1001

NUT,Keps, w/LW, 1/4"-28

- Keps, 1/4 inch NF (With Ref. 28, 29 and 30 replaces 193-1000)

1шт.

Part of Draft Sensing Control Kit, P/N 1344065C1

1шт.

1344065C1

PACKAGE

KIT - draft sensing control, Includes: Ref. 13, 22, 28, 29, 30 and 31

1шт.
