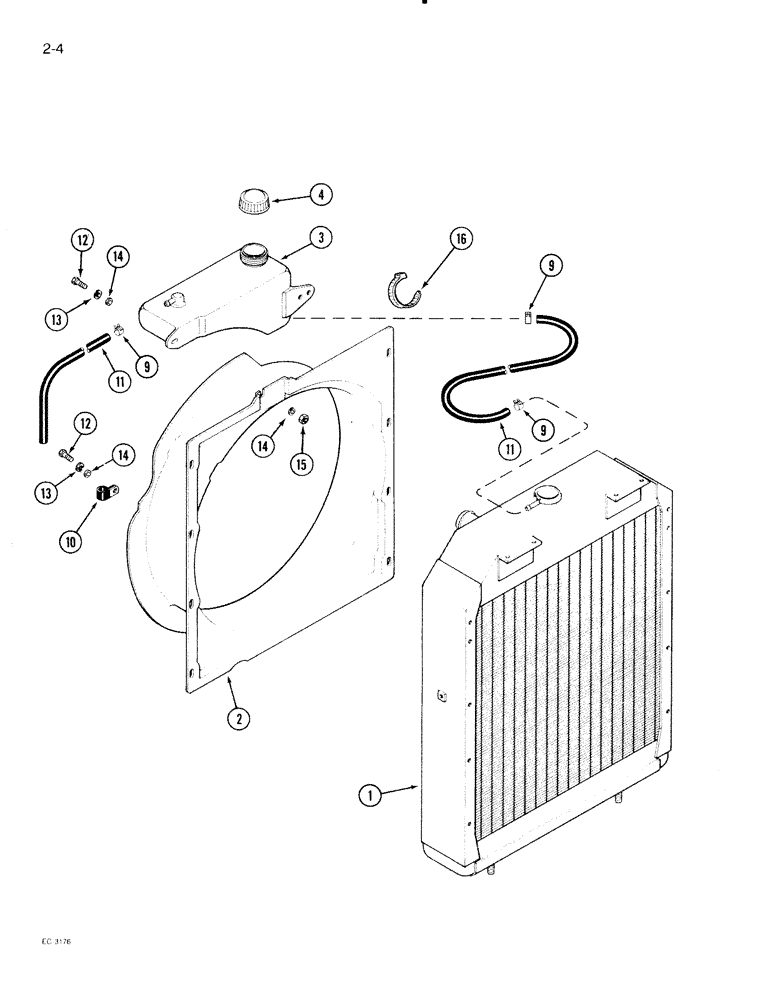

Запчасти Case IH 2096 (2-004) - COOLANT RECOVERY BOTTLE, 6TA-590 ENGINE (02) - ENGINE

1

A171653

RADIATOR

- cooling system (See Figure 2-002)

1шт.

2

A173247

GUARD

SHROUD - fan (See Figure 2-002)

1шт.

3

A184371

BOWL

BOTTLE - recovery, coolant (Replaces A173266)

1шт.

4

A184079

CAP

- container (Replaces A171929)

1шт.

9

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - hose, retaining

3шт.

10

NLS

NO LONGER SERVICED

CLIP - hose

2шт.

11

A172913

HOSE,7.50 mm ID, 8.30 mm ID x 950.00 mm, SAE 30R6 per J30

- Recovery drain 7.50 mm ID, 8.30 mm ID x 950.00 mm, SAE 30R6 per J30

2шт.

12

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(See Figure 2-002) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (See Figure 2-002) 5/16"

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") (See Figure 2-002) 5/16"

1шт.

15

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

16

L76747

STRAP

- nylon retaining, 8 inch

1шт.
