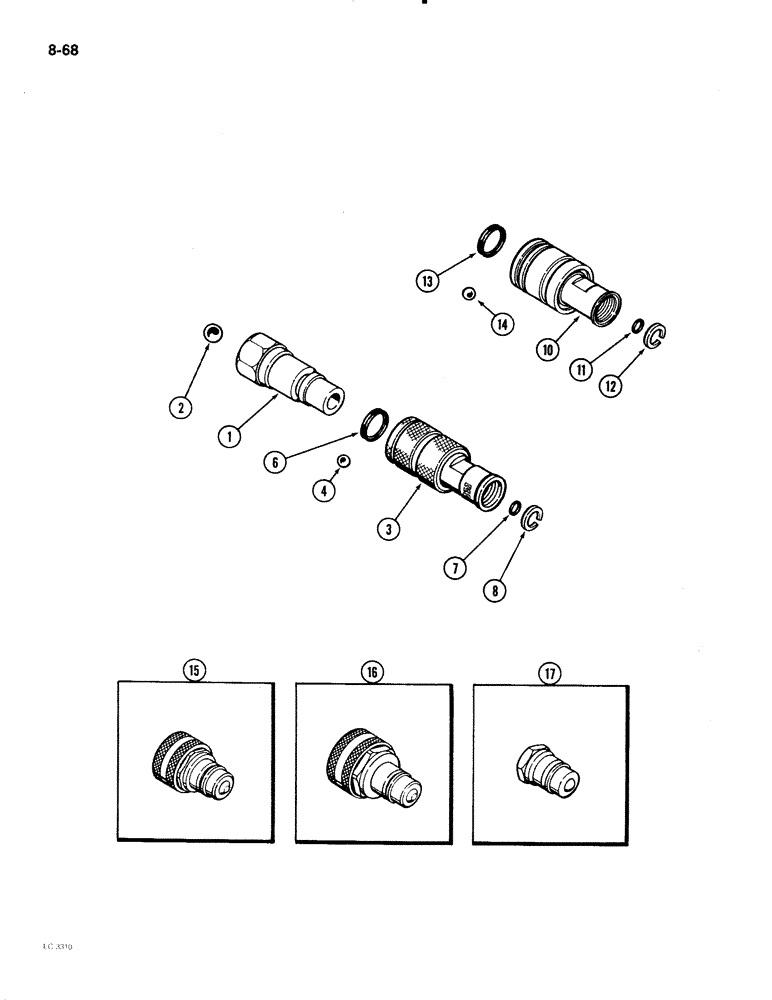

Запчасти Case IH 2096 (8-068) - REMOTE QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING - hydraulic, male, Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- 17/32 inch, carbon steel, grade 100

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING - quick disconnect, female half (Order A177478), Includes: Ref. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- 3/16 inch, grade 200, chrome alloy steel

1шт.

A47220

GASKET KIT

KIT - service, quick disconnect couplings, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling body

1шт.

7

A47222

SEAL

- valve coupling

1шт.

8

A45603

RING, LOCKING

RING - lock, male coupling

1шт.

10

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, Includes: quick disconnect couplings service kit and Ref. 11 - 14

1шт.

A47220

GASKET KIT

KIT - service, quick disconnect couplings, Includes: Ref. 11 - 13

1шт.

11

A47222

SEAL

- valve coupling

1шт.

12

A45603

RING, LOCKING

RING - lock, male coupling

1шт.

13

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling body

1шт.

14

211-355

BALL

- 3/16 inch, carbon steel, grade 200

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic coupling

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except with 1/2-14 inch internal thread), hydraulic coupling adapters

1шт.
