(8-058) - REMOTE VALVE SECTION, THIRD OR FOURTH CIRCUIT, WITHOUT LOAD CHECK (CONTD)

Запчасти Case IH 2096 (8-058) - REMOTE VALVE SECTION, THIRD OR FOURTH CIRCUIT, WITHOUT LOAD CHECK (CONTD) (08) - HYDRAULICS

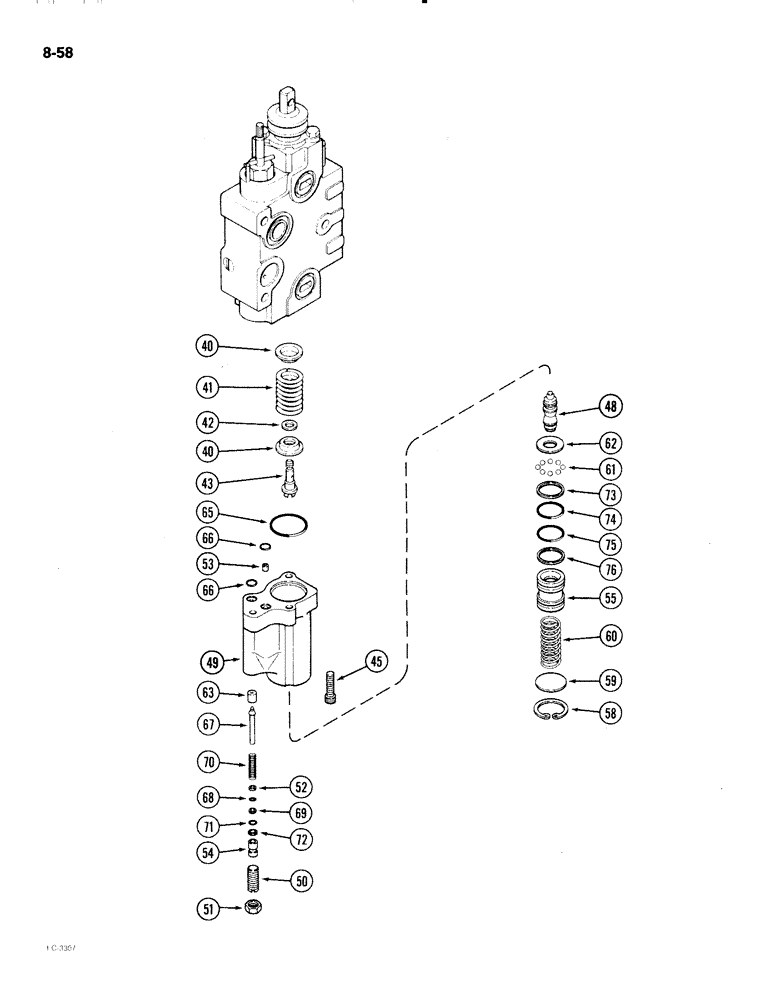

Схема запчастей Case IH 2096 - (8-058) - REMOTE VALVE SECTION, THIRD OR FOURTH CIRCUIT, WITHOUT LOAD CHECK (CONTD) (08) - HYDRAULICS
45
49
40
41
65
40
73
72
61
54
60
74
71
53
58
51
50
52
76
68
70
55
62
43
66
59
42
48
69
67
66
75
63
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A169029

VALVE

SECTION - valve, without load check, Includes: Ref. 40 - 76 in this figure and parts in Figure 8-056

1шт.

40

A47197

RETAINER

- spring

2шт.

41

A47177

SPRING

- centering

1шт.

42

A47199

BUSHING

SPACER - detent

1шт.

43

A47193

COUPLING, BREAK AWAY

COUPLER - detent pivot

1шт.

45

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW - cap, hex socket, 1/4 NC x 1 inch

3шт.

A48940

KIT

- service, detent, Includes: Ref. 48 - 76

1шт.

48

NSS

NOT SOLD SEPARAT

SHAFT - detent

1шт.

49

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - detent, Includes: Ref. 50 - 76

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

- adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

52

A48935

WASHER

- valve

1шт.

53

A47658

PLUG

- orifice

1шт.

54

A48936

GOVERNOR

PISTON - regulator

1шт.

55

A48932

PISTON

- kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

RETAINER - piston

1шт.

60

A48934

SPRING

- detent

1шт.

61

211-6

BALL,7/32" Dia

grade 200, chrome steel 7/32" Dia

8шт.

62

A48931

WASHER

- guide

1шт.

63

A47201

SEAT

- pilot float assembly

1шт.

A48942

KIT

- service, detent seals, Includes: Ref. 65 - 76

1шт.

65

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

66

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk

2шт.

67

A48958

VALVE POPPET

POPPET - detent

1шт.

68

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

69

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup

1шт.

70

A48961

RETAINER

SPRING - relief

1шт.

71

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.
