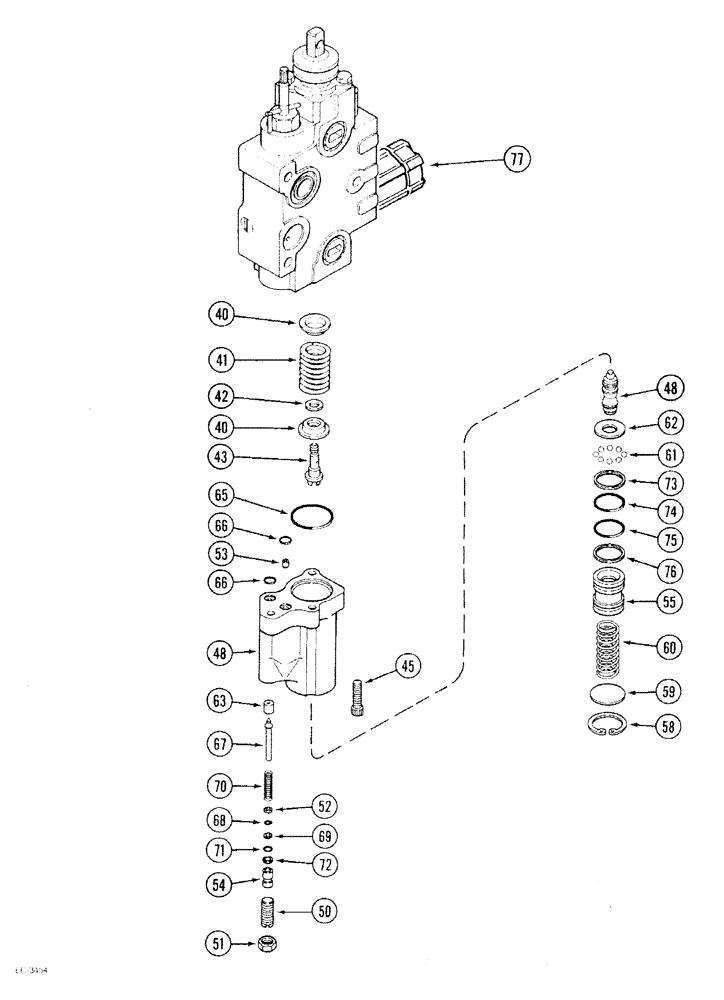

Запчасти Case IH 2096 (8-054) - REMOTE VALVE SECTIONS, FIRST AND SECOND CIRCUITS (CONTD) (08) - HYDRAULICS

1986840C1

VALVE

SECTION valve, priority float, with lockout, Includes: Ref. 40 - 77 and 2 - 36 on Fig. 8-052

1шт.

1986841C1

VALVE

SECTION valve, float, with lockout, Includes: Ref. 40 - 77 and 2 - 36 on Fig. 8-052

1шт.

40

A47197

RETAINER

spring

1шт.

41

A47177

SPRING

centering

1шт.

42

A47199

BUSHING

SPACER detent

1шт.

43

A47193

COUPLING, BREAK AWAY

COUPLER detent pivot

1шт.

45

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW cap, hex socket, 1/4 NC x 1 inch

3шт.

A48940

KIT

service, detent, Includes: Ref. 48 - 76

1шт.

48

NSS

NOT SOLD SEPARAT

SHAFT detent

1шт.

49

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY detent, Includes: Ref. 50 - 76

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8 inch NF

1шт.

52

A48935

WASHER

valve

1шт.

53

A47658

PLUG

orifice

1шт.

54

A48936

GOVERNOR

PISTON regulator

1шт.

55

A48932

PISTON

kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

RETAINER piston

1шт.

60

A48934

SPRING

detent

1шт.

61

211-6

BALL,7/32" Dia

grade 200, chrome steel 7/32" Dia

8шт.

62

A48931

WASHER

guide

1шт.

63

A47201

SEAT

pilot float assembly

1шт.

A48942

KIT

service, detent seals, Includes: Ref. 65 - 76

1шт.

65

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

66

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

67

A48958

VALVE POPPET

POPPET detent

1шт.

68

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

69

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

backup

1шт.

70

A48961

RETAINER

SPRING relief

1шт.

71

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING backup

1шт.

77

A52422

VALVE

HOUSING ASSEMBLY lockout

1шт.
