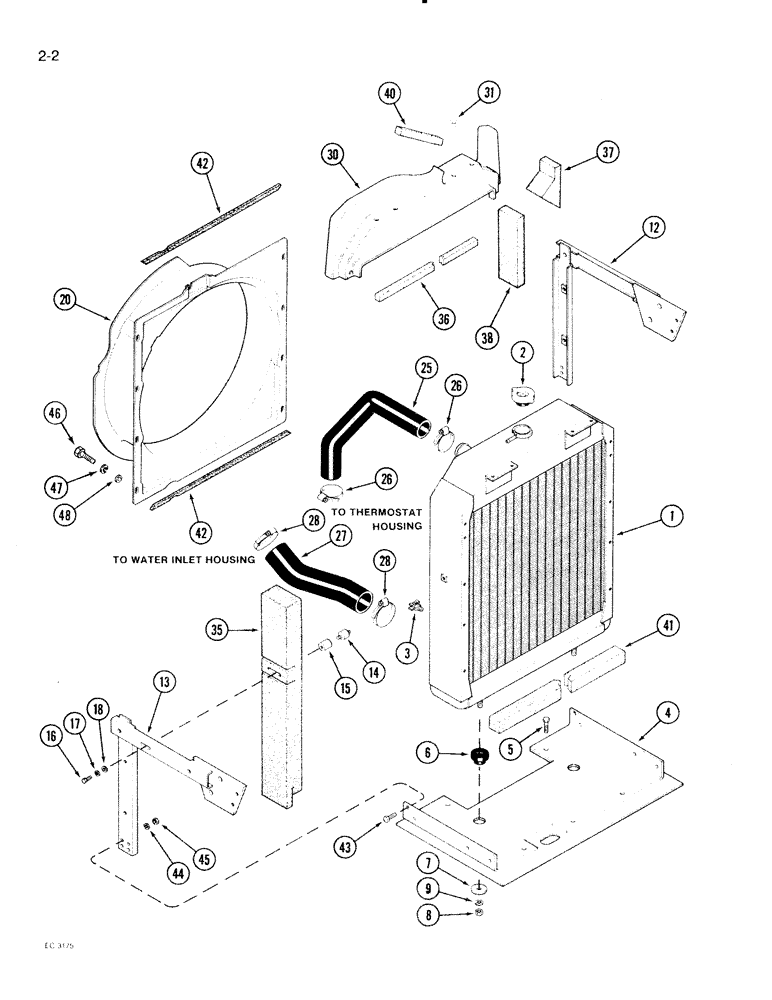

Запчасти Case IH 2096 (2-002) - RADIATOR AND ATTACHING PARTS, 6TA-590 ENGINE (02) - ENGINE

1

A171653

RADIATOR

- cooling system

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

103647

VALVE

- drain, 1/4 inch PT (If equipped)

1шт.

4

A167000

SUPPORT

- lower radiator

1шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 35 mm

5шт.

6

L46821

SHOCK ABSORBER

BUSHING - rubber mount

2шт.

7

48560

BRAKE LINING

- flat, radiator support

2шт.

8

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

9

492-1150

WASHER - lock, 1/2 inch

2шт.

12

A185052

CHANNEL

SUPPORT - hood and radiator, right (Replaces A169188)

1шт.

13

A185374

SUPPORT

- hood and radiator, left (Replaces A169187)

1шт.

14

A145743

MOUNTING PARTS

MOUNT - rubber, radiator side, upper

2шт.

15

A145992

SPACER

- radiator mount (Replaces A161631)

2шт.

16

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

20

A173247

GUARD

SHROUD - fan

1шт.

25

A170501

RADIATOR HOSE,45.00 mm ID x 366.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1 OR D2

45.00 mm ID x 340.00 mm, SAE 20R4 per SAE J20, Upper

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adj. #36, 1.81/2.75 Type F Worm

2шт.

27

A169930

HOSE,58.00 mm ID x 303.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1 OR D2

- radiator, lower

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - adj, 2-5/16 - 3-1/4 inch dia.

2шт.

30

A145975

BAFFLE

- radiator, upper

1шт.

31

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Whizlock Hex Flg, 5/16"-18 x 1/2", Serr

4шт.

35

A187026

SEAL

SEAL - radiator to side panel

2шт.

36

A149296

SEAL

- radiator, upper

1шт.

37

A149643

SEAL

- baffle opening (Left of air intake)

1шт.

38

A149642

SEAL

- baffle opening (Right of air intake)

1шт.

40

A149644

SEAL

- cooler, Serial Range: tubes-baffle

1шт.

41

A149962

SEAL

- radiator, lower

1шт.

42

A172921

SEAL

- radiator shroud

2шт.

43

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

44

492-11038

LOCK WASHER,3/8"

4шт.

45

425-106

NUT,3/8"-16, Cl 5

4шт.

46

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

7шт.

47

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

48

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

7шт.
