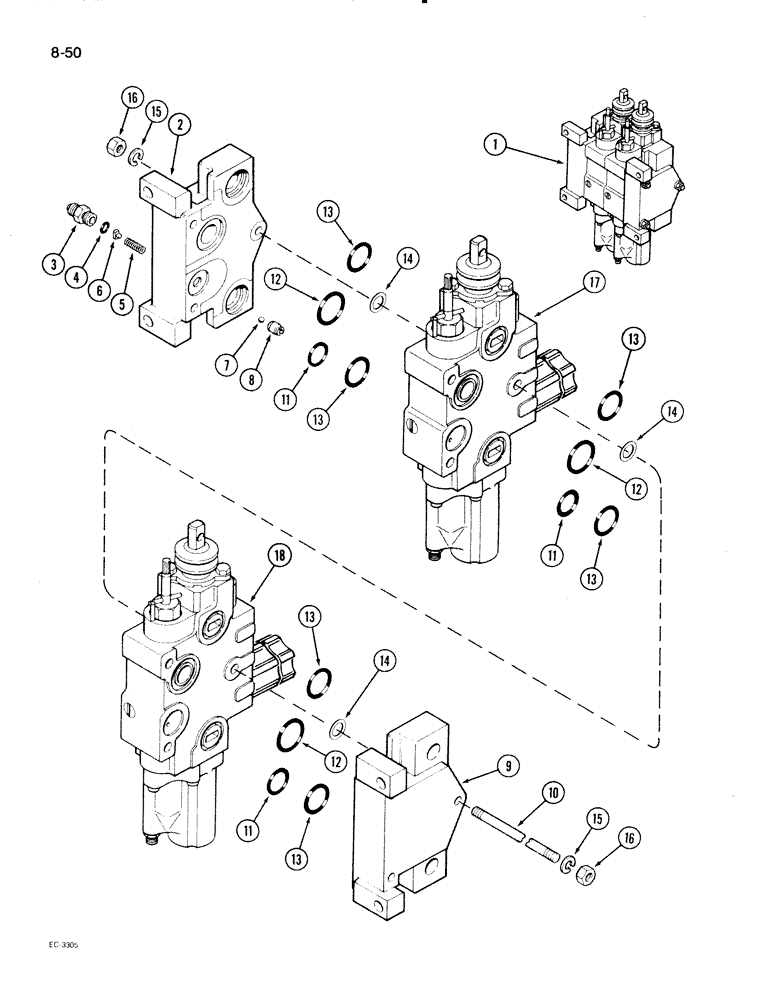

Запчасти Case IH 2096 (8-050) - REMOTE CONTROL VALVE, TWO SECTION VALVE (08) - HYDRAULICS

1

1986842C1

VALVE

ASSEMBLY - remote, 2 spool, Includes: Ref. 2 - 18

1шт.

2

A47169

COVER

ASSEMBLY - inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

5

A47176

SPRING

- valve

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-257

BALL,1/4" Dia

Chrome alloy steel, grade 50 1/4" Dia

1шт.

8

A47202

SEAT

- valve

1шт.

9

A52403

BODY

COVER - end

1шт.

A48919

SEAL

KIT - service, valve seals and studs, Includes: Ref. 10 - 16

1шт.

10

A147506

STUD

- 3/8 NC x 8 inch

3шт.

11

D54849

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- 3/4 inch O.D.

3шт.

12

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

3шт.

13

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

6шт.

17

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

9шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

6шт.

17

1986840C1

VALVE

SECTION - valve, priority float (See Figure 8-052)

1шт.

18

1986841C1

VALVE

SECTION - valve, float (See Figure 8-052)

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
