(8-044) - REMOTE ADD-ON ATTACHMENT, NO. THREE CIRCUIT, WITH LOAD CHECK (CONTD)

Запчасти Case IH 2096 (8-044) - REMOTE ADD-ON ATTACHMENT, NO. THREE CIRCUIT, WITH LOAD CHECK (CONTD) (08) - HYDRAULICS

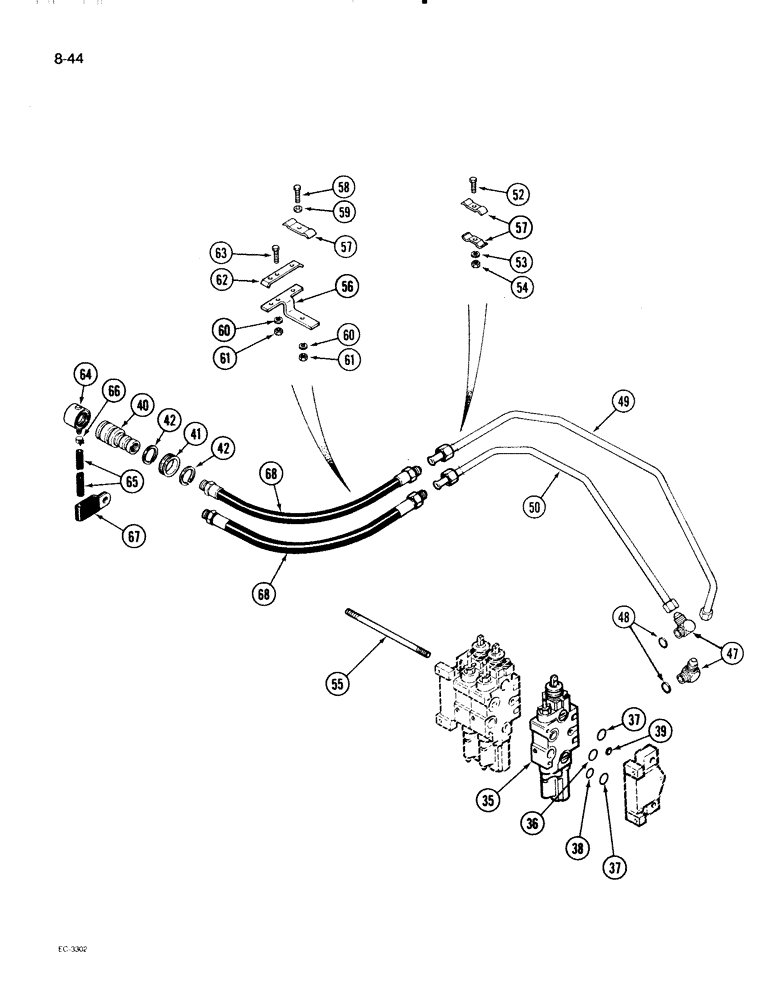

Схема запчастей Case IH 2096 - (8-044) - REMOTE ADD-ON ATTACHMENT, NO. THREE CIRCUIT, WITH LOAD CHECK (CONTD) (08) - HYDRAULICS
36
56
37
47
49
68
62
60
57
50
59
64
55
38
58
42
63
42
41
40
66
68
57
39
37
48
54
65
60
67
61
35
53
52
61
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A181932

KIT - remote valve 'add-on' attachment, with load check, Includes: Ref. 35 - 68 in this figure and parts in Figure 8-042

1шт.

35

A169456

VALVE

SECTION - valve, remote, with load check (See Figure 8-060)

1шт.

A47576

KIT

- seals and shims, Includes: Ref. 36 - 39

1шт.

36

S6578

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 inch ID

1шт.

37

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

38

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

39

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

40

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway (See Figure 8-068)

2шт.

41

A139805

RETAINER

- coupling

2шт.

42

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

47

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 48

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

A181337

TUBE

- valve to No. 5 coupling (With A181359 replaces A165387)

1шт.

50

A181339

TUBE

- valve to No. 6 coupling (With A181359 replaces A165388)

1шт.

52

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

A147507

STUD

- 3/8 NC x 9-7/8 inch, section mounting

3шт.

56

A147771

BRACKET

- support, tube clamp

1шт.

57

A17542

CLAMP

- tube

3шт.

58

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

59

95-4

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

60

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

61

25-104

NUT,1/4"-20, G5

3шт.

62

A147772

CLAMP

- tube

1шт.

63

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

64

A177479

CAP

- dust, coupling

2шт.

65

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Cut to Length) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

66

A180159

CLAMP,10.29mm - 12.32mm

- hose

2шт.

67

A180154

CLAMP

- drain hose

1шт.

68

A181359

HOSE,12.70 mm ID x 782.00 mm, SAE 100R2

- - Remote tubes to couplings 12.70 mm ID x 782.00 mm, SAE 100R2

2шт.
