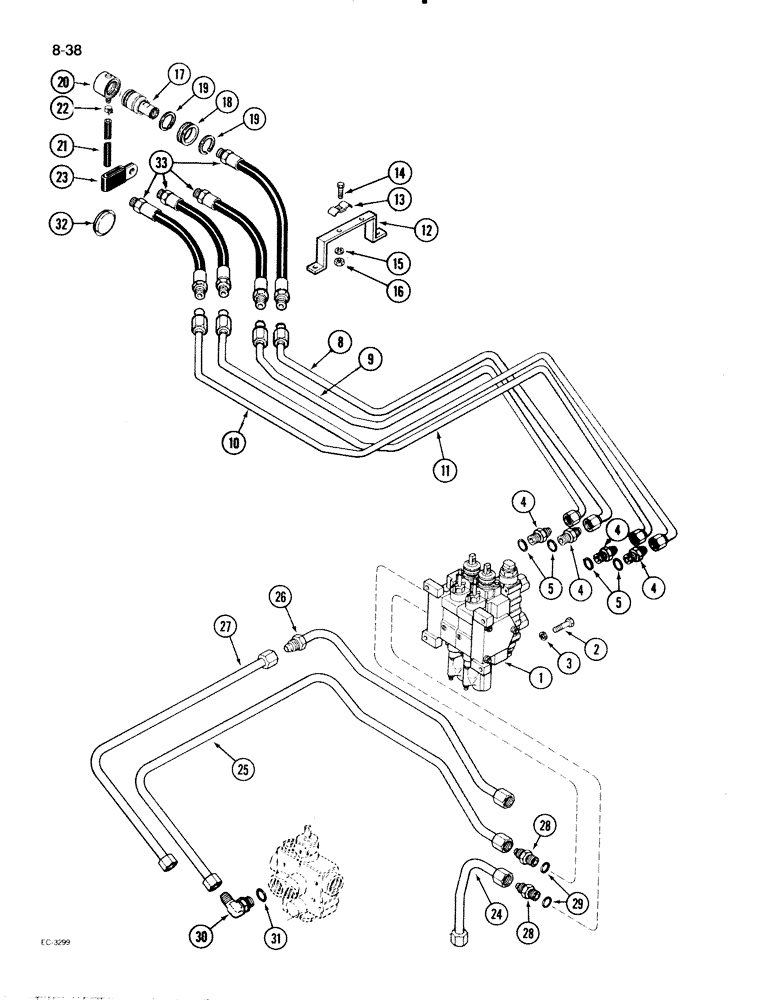

Запчасти Case IH 2096 (8-038) - REMOTE VALVE, HOSES AND COUPLINGS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

1986842C1

VALVE

ASSEMBLY - remote, 2 spool (See Figure 8-050)

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 5

4шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A181331

TUBE

- valve to No. 1 coupling (With A181348 replaces A145901)

1шт.

9

A181332

TUBE

- valve to No. 2 coupling (With A181348 replaces A177562)

1шт.

10

A181333

TUBE

- valve to No. 3 coupling (With A181348 replaces A180043)

1шт.

11

A181335

TUBE

- valve to No. 4 coupling (With A181348 replaces A180044)

1шт.

12

A185636

BRACKET

- tube clamp (Replaces A141174)

1шт.

13

A63323

CLAMP

- tube

2шт.

14

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

15

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

A177478

COUPLING, QUICK, FEM

COUPLING - breakaway (See Figure 8-068)

4шт.

18

A139805

RETAINER

- coupling

4шт.

19

A137976

SNAP RING,#150, 1.408", Ext

RING - retaining

8шт.

20

A177479

CAP

- dust, coupling

4шт.

21

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Cut to Length) 7.90 mm ID x 914.40 mm, SAE J200

4шт.

22

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

4шт.

23

A180154

CLAMP

- hose

1шт.

24

A147058

TUBE

- remote, Serial Range: valve-filter

1шт.

25

REF

INSTRUCTION

TUBE - regulator valve to remote valve (Order Ref Nos 26 and 27)

1шт.

26

A162503

TUBE

- regulator valve to remote valve (Left section)

1шт.

27

A162502

TUBE

- regulator valve to remote valve (Right section)

1шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 29

3шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch wide

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj. O-ring boss, Incl. Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch wide

1шт.

32

353-590

PLUG,1 7/8"

- button, 1-7/8 inch (Platform hose opening)

4шт.

33

A181348

HYDRAULIC HOSE,12.7mm ID x 457.2mm L, SAE 100R2

12.70 mm ID x 457.20 mm, - Remote tubes to couplings SAE 100R2

4шт.
