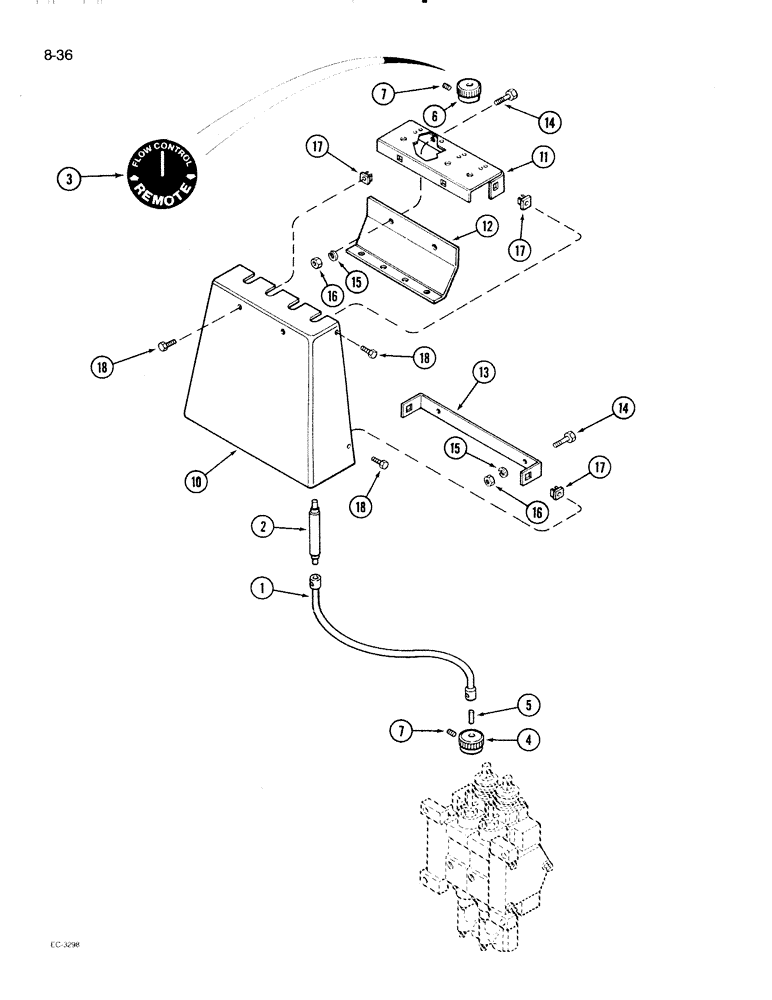

Запчасти Case IH 2096 (8-036) - REMOTE FLOW CONTROL KITS (08) - HYDRAULICS

A67476

KIT

- remote flow control, Includes: Ref. 1 - 7

1шт.

1

A149146

SHAFT

- flexible, flow control

1шт.

2

A147636

SHAFT

- rigid, flow control

1шт.

3

321-4129

DECAL

- flow control

1шт.

4

A160814

KNOB

- flow control

1шт.

5

A160815

PIN

- flexible shaft

1шт.

6

A160814

KNOB

- flow control

1шт.

7

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, N0. 10-32 x 5/8 inch

3шт.

A67475

KIT

- console, remote flow control, Includes: Ref. 10 - 18

1шт.

10

A160259

PANEL

SHROUD - flow control

1шт.

11

A160256

SUPPORT

- shroud, flow control

1шт.

12

A160257

BRACKET

- flow control, upper

1шт.

13

A160314

KNOB

BRACKET - flow control, lower

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

425-104

NUT,1/4"-20, Cl 5

4шт.

17

A67319

NUT

- console cover hold down

6шт.

18

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
