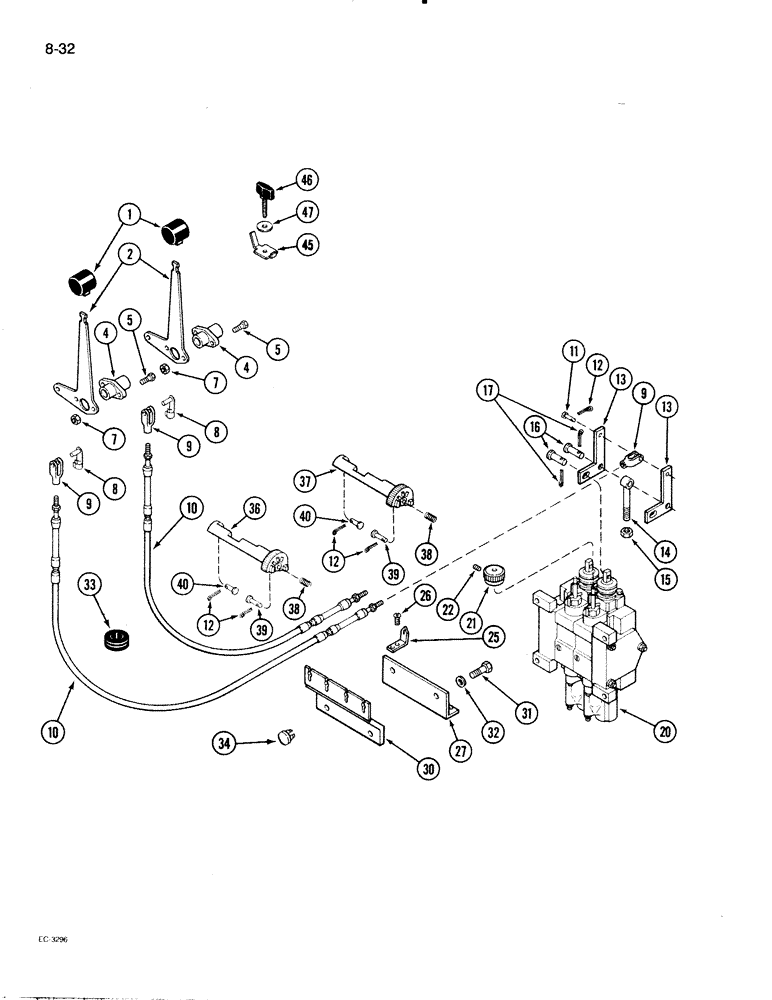

Запчасти Case IH 2096 (8-032) - REMOTE HYDRAULIC CONTROLS, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A177438

KNOB

- lever (Black)

2шт.

2

A181781

LEVER

- remote

2шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever

2шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

8

A149683

PIN

- clevis, spring, 3/16 inch

2шт.

9

213-1

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10

4шт.

10

A177635

CABLE

- control, Serial Range: lever-valve

2шт.

11

A67313

PIN

- bellcrank to control cable clevis

2шт.

12

32-412

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

6шт.

13

A145598

LEVER

- remote valve bellcrank

4шт.

14

A145597

EYE

- bellcrank pivot

2шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

2шт.

16

141-54

CLEVIS PIN,3/8" x 1 1/16"

hardened 3/8" x 1 1/16"

4шт.

17

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

20

1986842C1

VALVE

ASSEMBLY - remote, 2 spool (See Figure 8-050)

1шт.

21

A160814

KNOB

- flow control

2шт.

22

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, No. 10-32 x 5/8 inch

2шт.

25

A64179

INDEX

- flow control (If equipped)

2шт.

26

263-5446

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan head slotted, No.8-18 x 3/8 inch (If equipped)

4шт.

27

A145804

BRACKET

- index, flow control (If equipped)

1шт.

30

A145021

PLATE

- mounting, remote cable

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

32

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

2шт.

33

A141389

GROMMET

- cable

2шт.

34

A67295

PLUG

- 9/16 inch diameter head

2шт.

34

A162961

PLUG

- 3/4 inch diameter head

2шт.

36

A162860

QUADRANT

- remote lockout, outer

1шт.

37

A162861

QUADRANT

- remote lockout, inner

1шт.

38

A164976

SPRING

- remote lockout

2шт.

39

A67313

PIN

- clevis, Serial Range: quadrant-cover

2шт.

40

A167543

PIN,4.72mm OD x 19.99mm L

- remote lockout

2шт.

A67602

KIT - stop, remote lever lockout, Includes: Ref. 45 - 47

1шт.

45

A176175

CLAMP

- lever stop

1шт.

46

A162958

BUTTON

KNOB - lever lock

1шт.

47

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

- flat, 3/8 x 1-1/8 x 1/16 inch

1шт.
