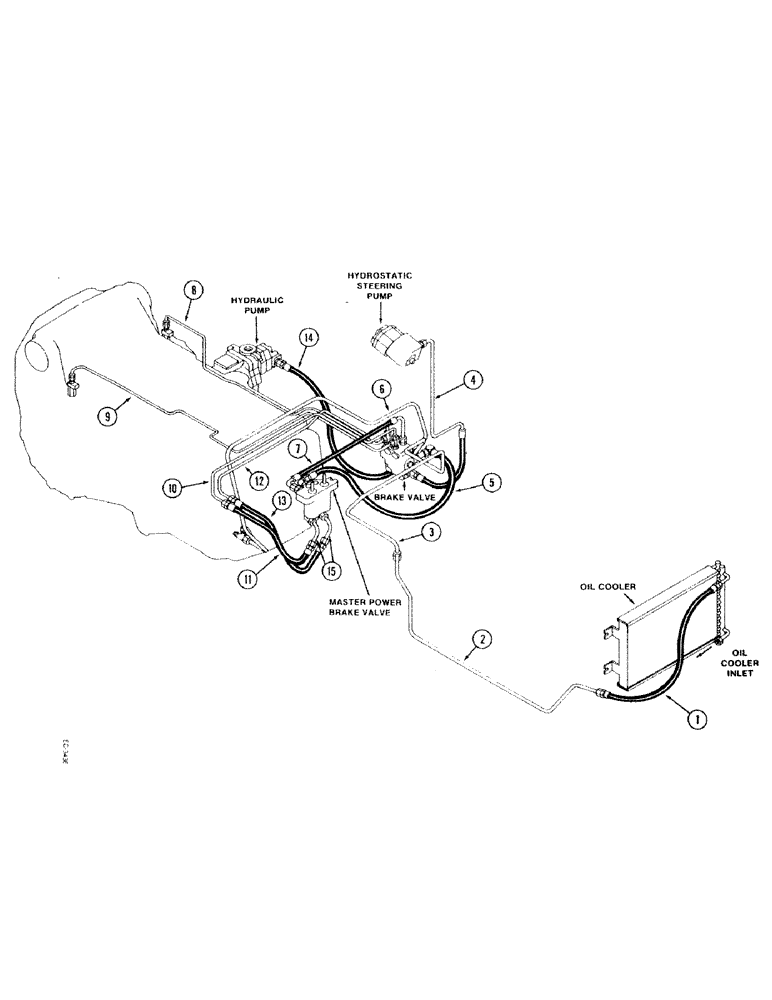

Запчасти Case IH 2096 (1-018) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

Oil Cooler Outlet Hose, Page 8-3

1шт.

2

Tube, Oil Cooler Outlet Center, Page 8-3

1шт.

3

Tube, Oil Cooler Outlet to Brake Valve, Page 8-3

1шт.

4

Hose, Steering Pump to Brake Valve, Page 5-9

1шт.

5

Master Power Brake Valve Inlet Hose, Page 7-5

1шт.

6

Oil Cooler Return Tube, Page 7-5

1шт.

7

Master power Brake Valve Drain Hose, Page 7-5

1шт.

8

Left Rear Brake Tube, Page 7-5

1шт.

9

Right Rear Brake Tube, Page 7-5

1шт.

10

Right Front Brake Tube, Page 7-5

1шт.

11

Right Front Brake Hose, Page 7-5

1шт.

12

Left Front Brake Tube, Page 7-5

1шт.

13

Left Front Brake Hose, Page 7-5

1шт.

14

Hose, Hydraulic Pump to Brake Valve, Page 7-5

1шт.

15

Tube, Front Brake Hose to Master Brake Valve, Page 7-5

1шт.
