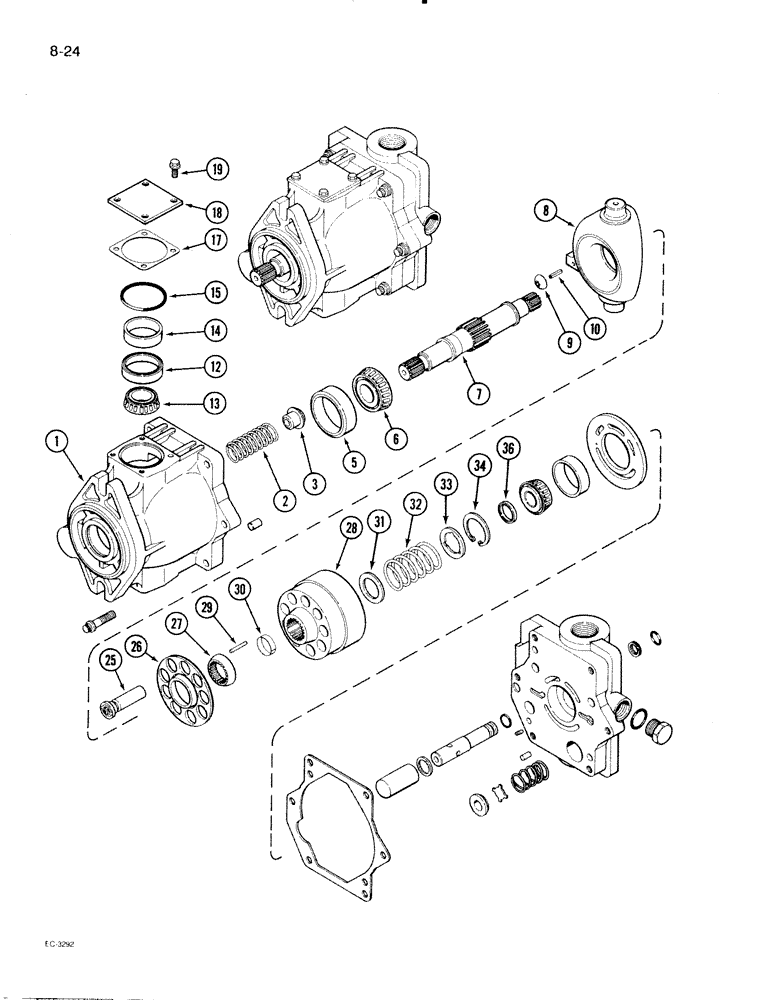

Запчасти Case IH 2096 (8-024) - GEAR AND PISTON PUMP ASSEMBLY, PISTON PUMP (08) - HYDRAULICS

A166504

PUMP

ASSEMBLY - hydraulic, complete, Includes: Ref. 1 - 36 and 38 - 59 on Fig. 8-026

1шт.

1346425C1

REMAN-HYD PUMP

2096 S/N 17897500 TO 17897505, 17897510 & AFTER (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - piston (Order A166504), Includes: Ref. 1 - 36 and 38 - 59 on Fig. 8-026

1шт.

1

A47278

HOUSING

- pump, piston

1шт.

2

A47281

SPRING

- piston pump housing

1шт.

3

A47282

PLUG

SEAT - spring, piston pump housing

1шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - bearing

1шт.

6

594446R1

ROLLER BEARING

CONE - bearing

1шт.

7

A47289

SHAFT

- drive, piston pump

1шт.

8

A47284

YOKE

- swing

1шт.

9

A47283

SEAT

- spherical, piston pump housing

1шт.

10

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

12

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

1шт.

13

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

CONE - bearing

1шт.

14

A47286

SPACER

- yoke bearing

2шт.

15

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

Part of Seals and Gaskets Service Kit, P/N A47567

1шт.

145590C1

SHIM KIT

KIT - service, yoke bearing shims, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch (Qty. 3 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch (Qty. 2 in kit)

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch (Qty. 2 in kit)

1шт.

18

A47288

COVER

- housing, piston pump

2шт.

19

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

25

A47334

PACKAGE

KIT - piston (Includes 9 pistons and 9 shoes)

1шт.

N8303

KIT

- service, rotating group, Includes: Ref. 26 - 34

1шт.

26

A47292

PLATE

- shoe, piston pump

1шт.

27

A47293

WASHER

- spherical, cylinder block

1шт.

28

A47295

BLOCK

- cylinder

1шт.

29

A47296

PIN

- cylinder block

3шт.

30

A47297

SNAP RING,7.11mm Thk, Int

- pin

1шт.

31

A47299

WASHER

- spring, front

1шт.

32

A47298

SPRING

- block

1шт.

33

A47300

SPRING WASHER

WASHER - spring, rear

1шт.

34

NLS

NO LONGER SERVICED

Ring, Snap, , piston pin 1.625", Int, #162

1шт.

145582C1

KIT

- bearing spacers, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.139 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.142 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.145 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.148 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.151 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.154 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.157 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.160 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.163 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.166 inch

1шт.

36

NSS

NOT SOLD SEPARAT

SPACER - 0.169 inch

1шт.

A47567

KIT

- service, seals and gaskets, Includes: Ref. 15, See Figure 8-022

1шт.
