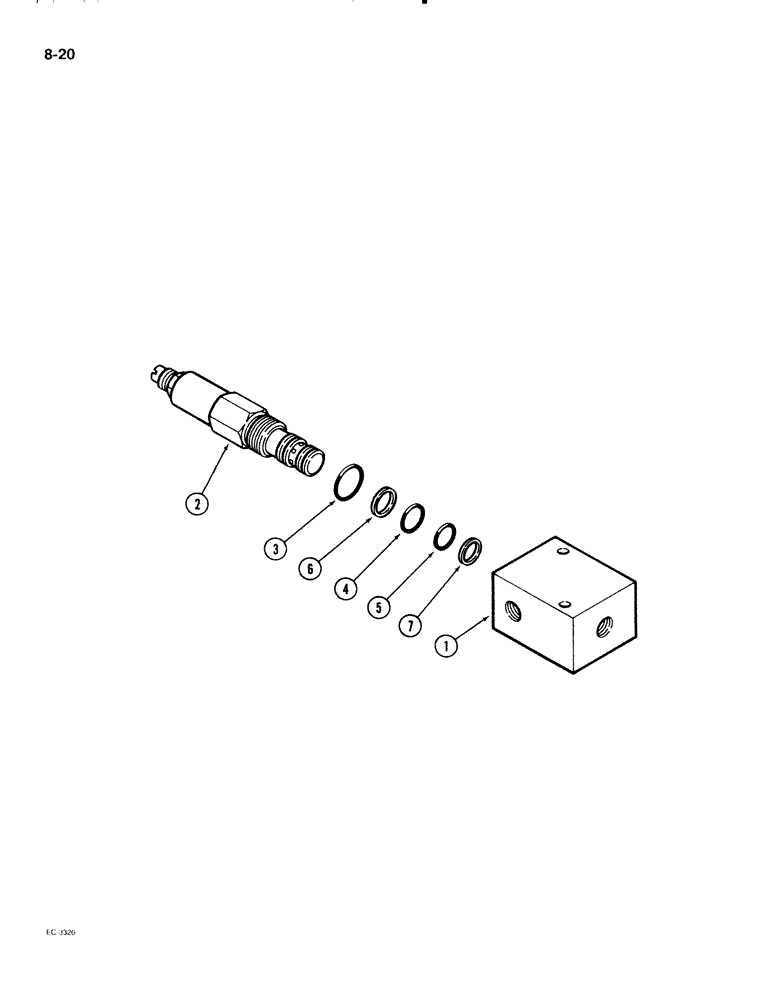

Запчасти Case IH 2096 (8-020) - SEAT PRESSURE REGULATOR VALVE (08) - HYDRAULICS

A185476

VALVE

ASSEMBLY - pressure regulator, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A185476)

1шт.

2

A52413

VALVE

CARTRIDGE - regulator valve (Replaces A48951)

1шт.

A48950

KIT

- seal, regulator valve, Includes: Ref. 3 - 7

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, Class 5

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch O.D.

1шт.

6

NSS

NOT SOLD SEPARAT

RING - back-up, teflon

1шт.

7

NSS

NOT SOLD SEPARAT

RING - back-up, teflon

1шт.
