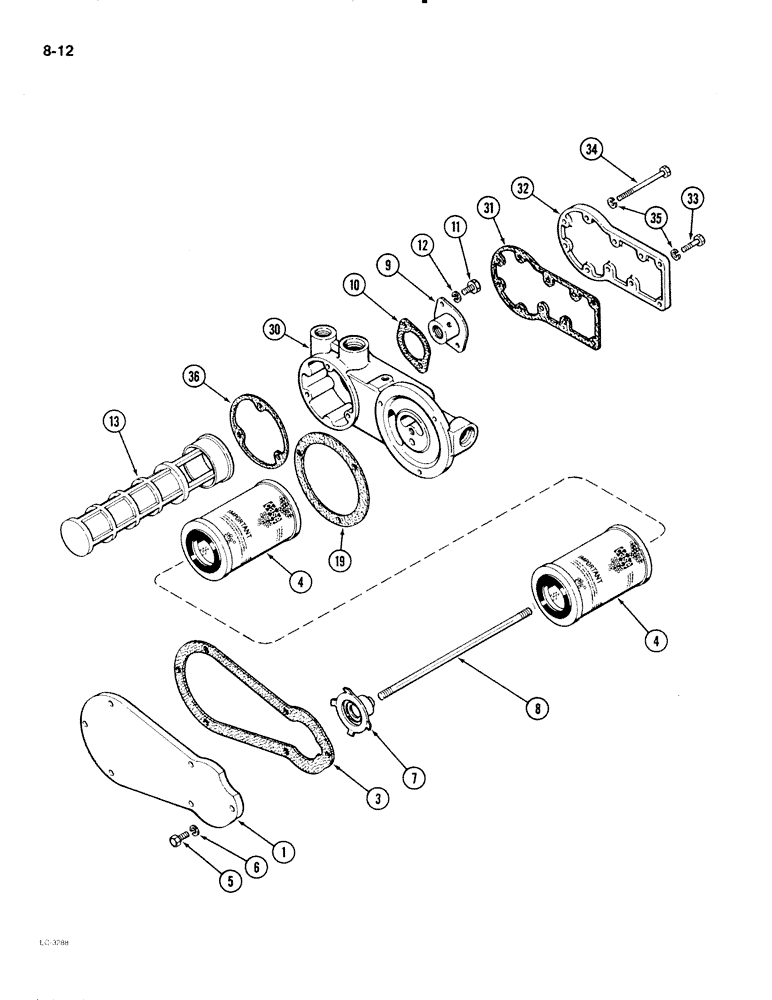

Запчасти Case IH 2096 (8-012) - HYDRAULIC OIL FILTER AND SCREEN (08) - HYDRAULICS

1

A141407

GASKET

COVER - right side

1шт.

3

1342783C1

GASKET

- filter housing cover (Replaces A185976)

1шт.

A176593

HYDRAULIC OIL FILTER

KIT - filter element, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

6шт.

7

A164424

VALVE

- by-pass

1шт.

8

A147922

STUD

- filter element

1шт.

9

A63343

REGULATOR

- pressure, oil filter

1шт.

10

A147062

GASKET

- regulator housing

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

A142025

SCREEN

- charge pump inlet

1шт.

19

A185975

GASKET,0.79mm Thk

- filter cover (Replaces A149986)

1шт.

30

A167841

HOUSING

- filter

1шт.

31

1342790C1

GASKET

- filter, left

1шт.

32

A161437

COVER

- filter housing, left

1шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

8шт.

34

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex, 3/8 NC x 4-1/4 inch

4шт.

35

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

12шт.

36

A185803

GASKET

- housing

1шт.
