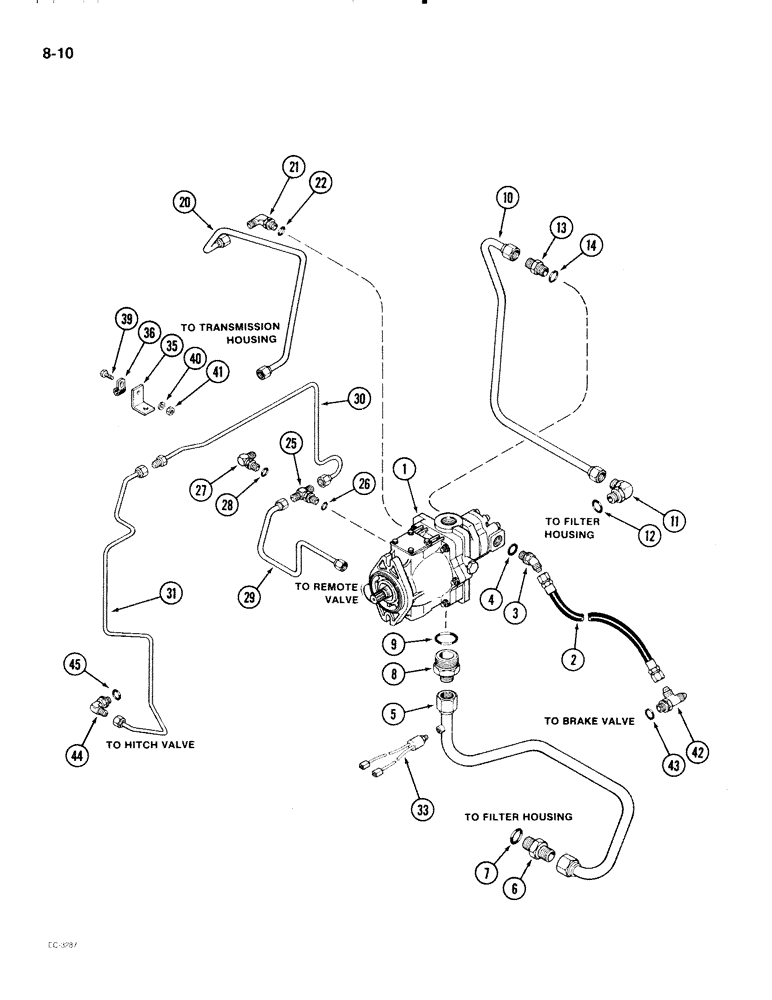

Запчасти Case IH 2096 (8-010) - HYDRAULIC PUMP CIRCUIT (08) - HYDRAULICS

1

A166504

PUMP

ASSEMBLY - hydraulic (See Figure 8-022)

1шт.

1346425C1

REMAN-HYD PUMP

2096 S/N 17897500 TO 17897505, 17897510 & AFTER (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A166607

HYDRAULIC HOSE,0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

- Hydraulic pump to brake valve 0.50" ID x 37.00", SAE 100R2 Type A per SAE J517

1шт.

3

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

5

A160222

TUBE

- suction, Serial Range: filter-pump

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, 1" OD tube

1шт.

8

A147128

CONNECTOR, ELEC

UNION - straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes: Ref. 9

1шт.

9

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .116" Thk, 1-1/2" OD tube

1шт.

10

A160218

TUBE

- suction, steering

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. o-ring boss, Incl. Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

A160223

TUBE

- pump drain

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 5/8" OD tube

1шт.

25

218-5510

TEE,9/16"-18, 37 Degree x 7/16"-20, O-Ring Br

7/16-20 inch thread adj O-ring branch x 9/16-18 inch flare x flare, Includes: Ref. 26

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

27

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj. O-ring, Incl. Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

29

A164627

TUBE

- pump, remote valve

1шт.

30

A162530

PIPE

TUBE - hitch pilot valve, left

1шт.

31

A162529

TUBE

- hitch pilot valve, right

1шт.

33

A167895

SWITCH

- pressure, 15 psi, transmission filter

1шт.

35

A162527

BRACKET

- clamp (With hitch)

1шт.

36

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness retaining, 3/8 inch ID (With hitch)

1шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(with hitch) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

40

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, , with hitch 5/16"

1шт.

41

25-102

WASHER

NUT - hex, 5/16 ich NC (With hitch)

1шт.

42

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj. O-ring boss (With hitch), Includes: Ref. 43

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss (With hitch), Includes: Ref. 45

1шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
