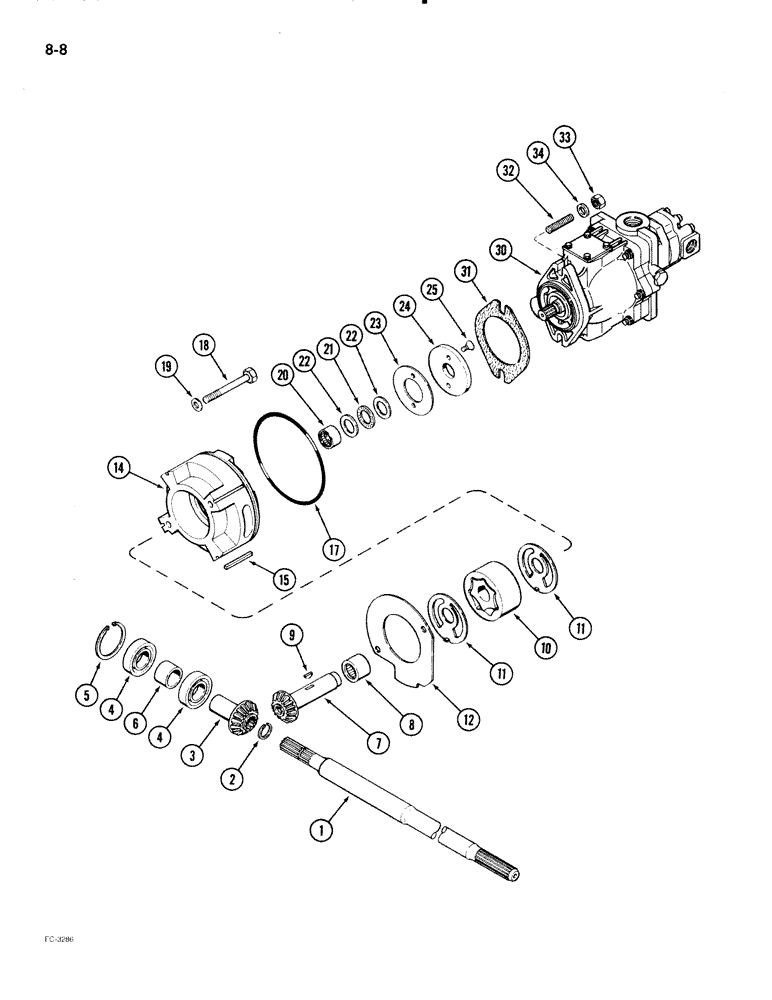

Запчасти Case IH 2096 (8-008) - HYDRAULIC CHARGE PUMP AND DRIVE (08) - HYDRAULICS

1

A168389

SHAFT

- drive, PTO and hydraulic pump (51.4 in. long)

1шт.

1346425C1

REMAN-HYD PUMP

2096 S/N 17897500 TO 17897505, 17897510 & AFTER (1/84-12/86)

1шт.

1346426C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

F62235

SNAP RING,#112, Ext

Ring, Snap, , pump drive bevel gear #112, Ext

1шт.

3

A151266

GEAR

- bevel, pump drive

1шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, drive gear

2шт.

5

A150936

RING

- retaining, 0.074 inch

1шт.

5

A151259

RING

- retaining, 0.079 inch

1шт.

5

A150935

RING

- retaining, 0.084 inch

1шт.

5

A151260

RING

- retaining, 0.089 inch

1шт.

5

A150934

RING

- retaining, 0.094 inch

1шт.

6

A142293

SPACER

- bevel gear bearing

1шт.

7

A152010

GEAR

PINION - bevel, pump drive

1шт.

8

A39457

NEEDLE BEARING,1.25" ID x 1.625" OD x 1.25"

BEARING - needle, pump drive

1шт.

9

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY - Woodruff, 7/8 x 3/16 inch

1шт.

10

A151258

PUMP

GEROTOR - charge pump

1шт.

11

A142022

PLATE

- wear, charge pump

2шт.

12

A144444

SHIM

- pump cover, 0.002 inch (Red)

1шт.

12

A144443

SHIM

- pump cover, 0.005 inch (Blue)

1шт.

14

A154647

HOUSING

COVER - side, charge pump

1шт.

15

A155684

SEAL

- cover, charge pump

4шт.

17

238-5262

O-RING,0.139" Thk x 6.984" ID, -262, Cl 5, 75 Duro

Charge pump -262, 70 Duro, 6.984" ID x .139" Thk

1шт.

18

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

2шт.

19

A30061

WASHER

- hardened, charge pump

2шт.

20

D63322

ROLLER BEARING,Needle, 31.75mm ID x 38.1mm OD x 19.05mm W

BEARING - needle, charge pump

1шт.

21

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - needle, thrust, charge pump drive

1шт.

22

A146625

WASHER, THRUST,28.63mm ID x 43.95mm OD x 3.2mm Thk

RACE - thrust, charge pump drive

2шт.

23

A151268

SHIM

- bearing retainer, 0.003 inch (Green)

1шт.

23

A151269

SHIM

- bearing retainer, 0.010 inch (Brown)

1шт.

24

A151267

RETAINER

- bearing

1шт.

25

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

SCREW - flat, hex socket, 3/8 NC x 1-1/4 inch, grade 8

2шт.

30

A166504

PUMP

ASSEMBLY - hydraulic (See Figure 8-022)

1шт.

31

1342787C1

GASKET

- mounting, pump

1шт.

32

A160002

STUD

- mounting, pump

2шт.

33

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

34

L30674

WASHER

- hardened

2шт.
